ZOLL R Series Service Manual

R Series Service Manual
9650-0903-01 Rev. L 3-19

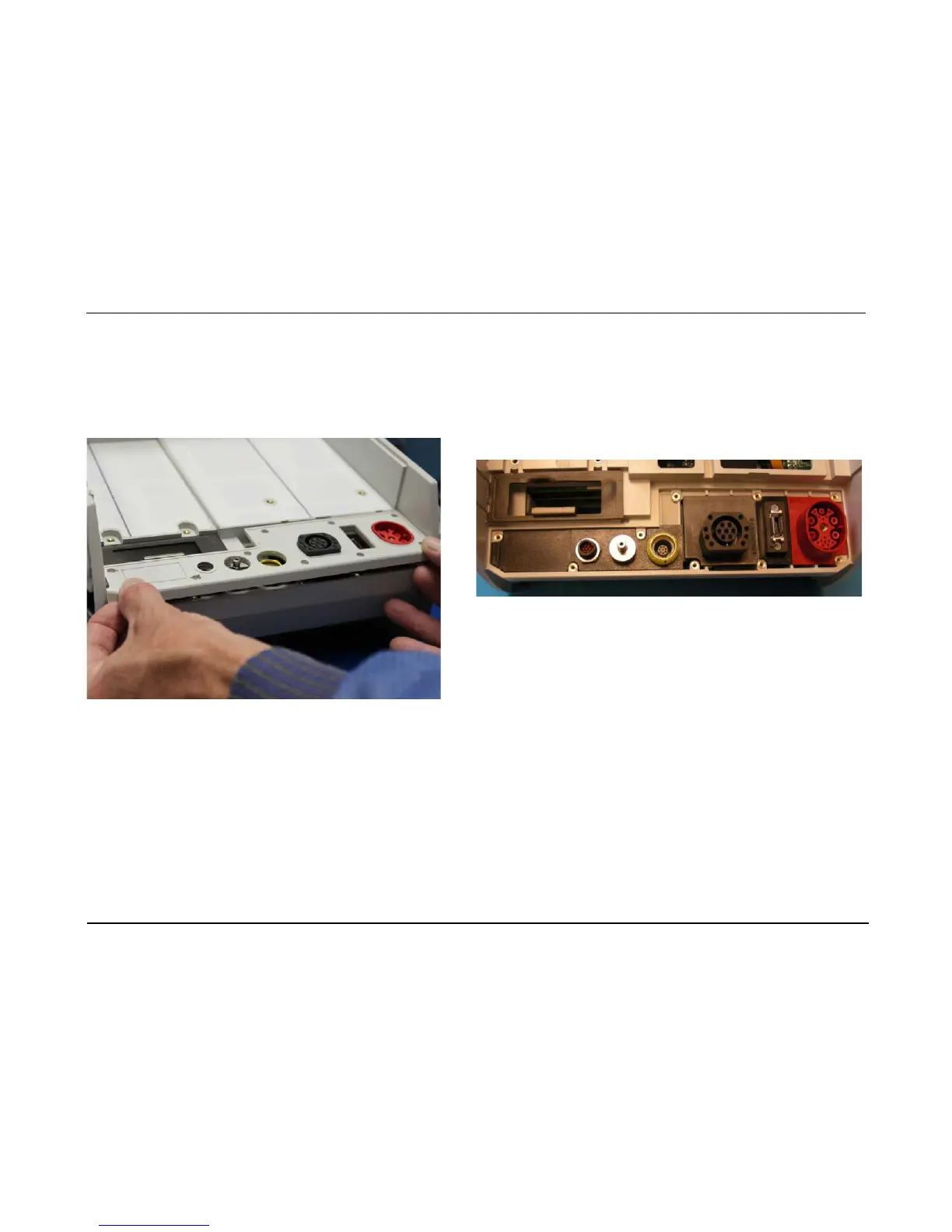

7. Remove the connector panel by lifting straight up.
Note: Below is the connector panel with the EtCO
2
and NIBP options. See
the diagram on page 4-17 for further disassembly.
Note: Depending on the options, the RS232 connector may be
attached to the panel. In that case the panel can be draped
over the rear of the unit.
Note: One or both side panels and/or the front panel may need to be
removed in order to disconnect cabling from some of the connectors
located on the rear panel.

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
