ZOLL R Series Service Manual

R Series Service Manual
3-24 9650-0903-01 Rev. L

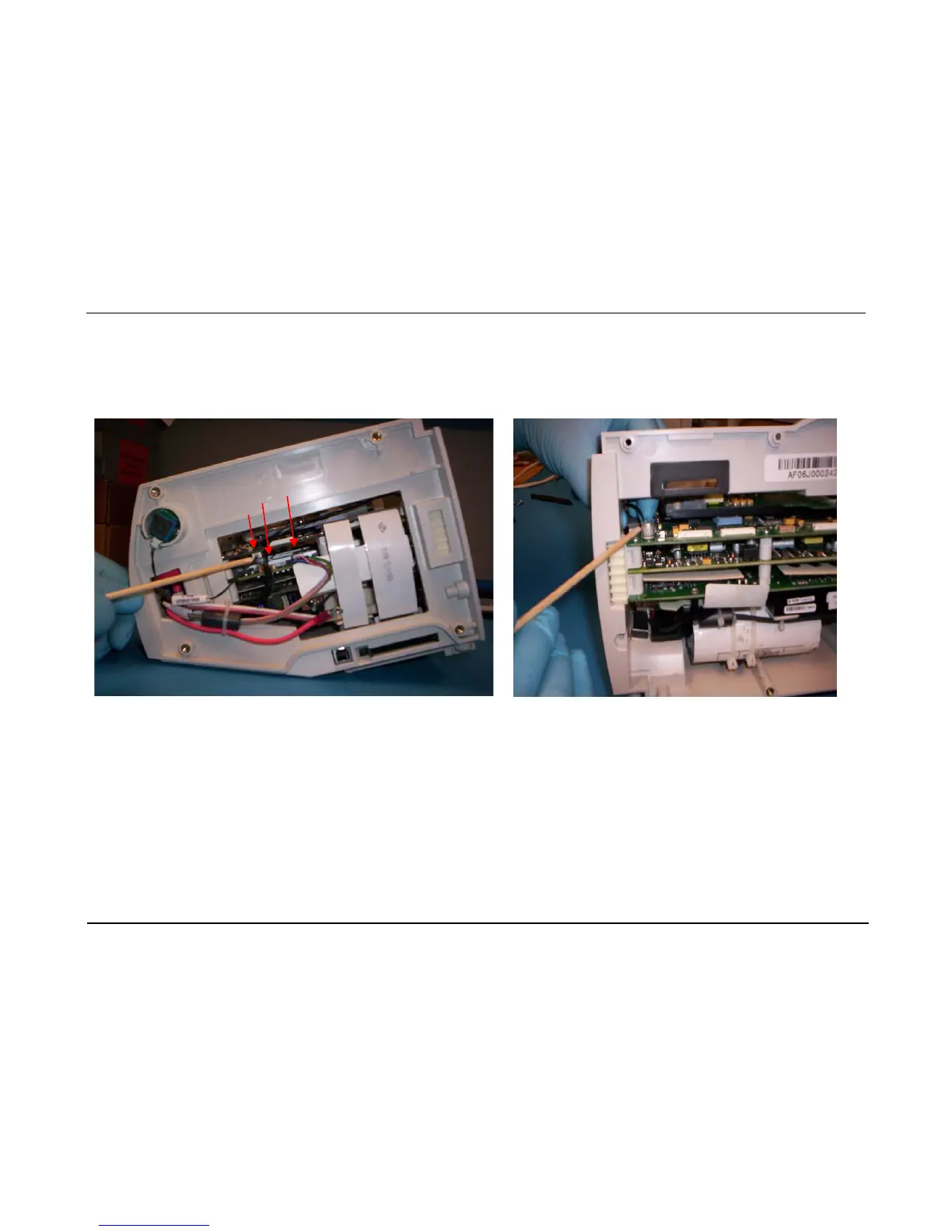

3. Carefully disconnect the speaker harness (1), the
sync cable (2), and the patient impedance cable (3).
4. Carefully disconnect the sync cable by pulling straight
up from top.
Note: Disconnect the speaker on the opposite side of the brick
assembly if you have not done this already.
3
2
1

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
