R Series Service Manual
3-28 9650-0903-01 Rev. L
Disassembling the System Brick Assembly
Note: See the safety precautions on page 3-2 before removing the system brick assembly.
The system brick assembly consists of three primary boards attached together, Units equipment with SpO
2
and/or EtCO
2
& NIBP will have two additional
boards.
Top: Digital system board (SpO
2
module and isolated power supply sits on digital board)
Middle: Analog system board
Bottom: Pace defibrillator engine
Use caution when pulling apart the three boards to prevent the EMI suppression plates from scattering.

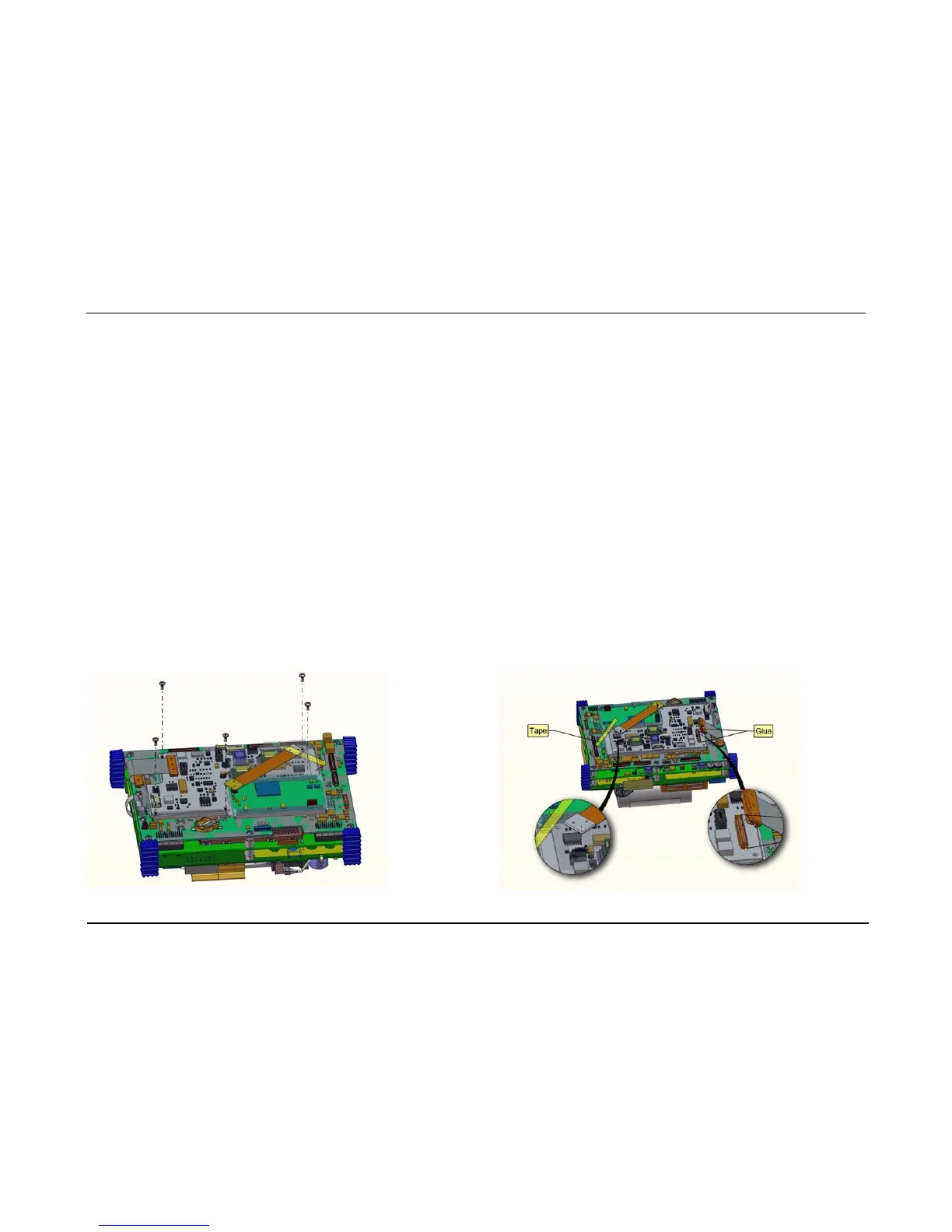

Removing Isolated Power Supply
1. Remove 5 screws holding the isolated power supply. 2. Peel back glue from connector, and disconnect cable
by pulling straight up. Remove tape holding cable to
isolated power supply, then disconnect cable.
Note: During reassembly torque screws to 4 in-lbs. Note: During reassembly re-apply glue to each side of connector.
