ZXR10 2920/2928/2952
(V1.0) Access Switch User Manual （Volume I）
264 Confidential and Proprietary Information of ZTE CORPORATION

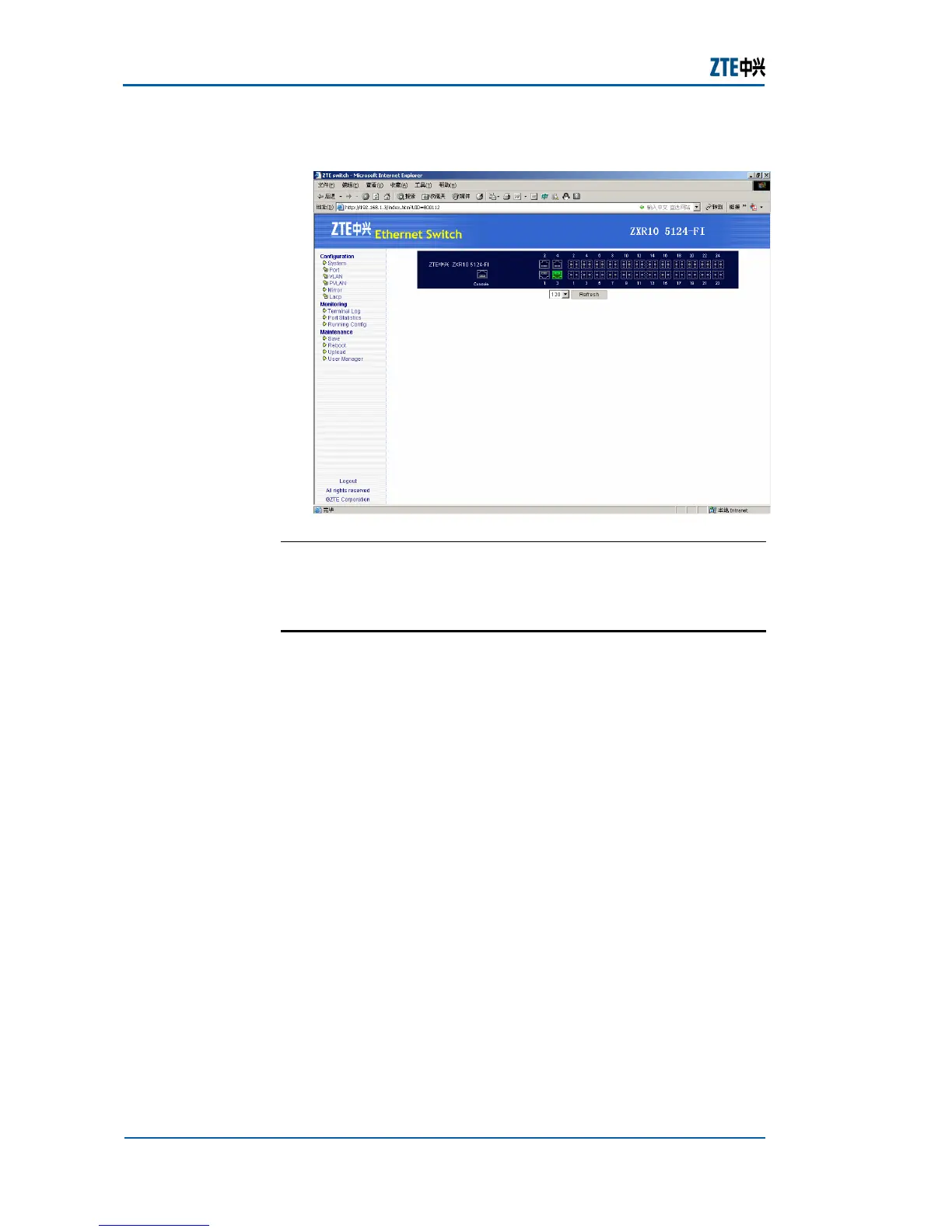

FIGURE 45 SYSTEM INTERFACE
END OF STEPS
Logging on using Web management is implemented.
Configuring a System
This topic describes the structure of switch configuration.
For system configuration, perform the following steps.
1. Click the catalog tree in the left of the system main page
Configuration > System to open system information page.
Result: System configuration is displayed showing all the
parameters as shown in
Figure 46.
Result
Purpose
Steps

Zte ZXR10 2928 Specifications

General

MAC Address Table Size	16K
VLAN	4K
Jumbo Frame	9K
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	< 30W
Dimensions	440mm x 200mm x 44mm
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
Ports	24 x 10/100/1000Base-T ports, 4 x GE SFP ports
