Chapter 9 Network Management
Confidential and Proprietary Information of ZTE CORPORATION 271

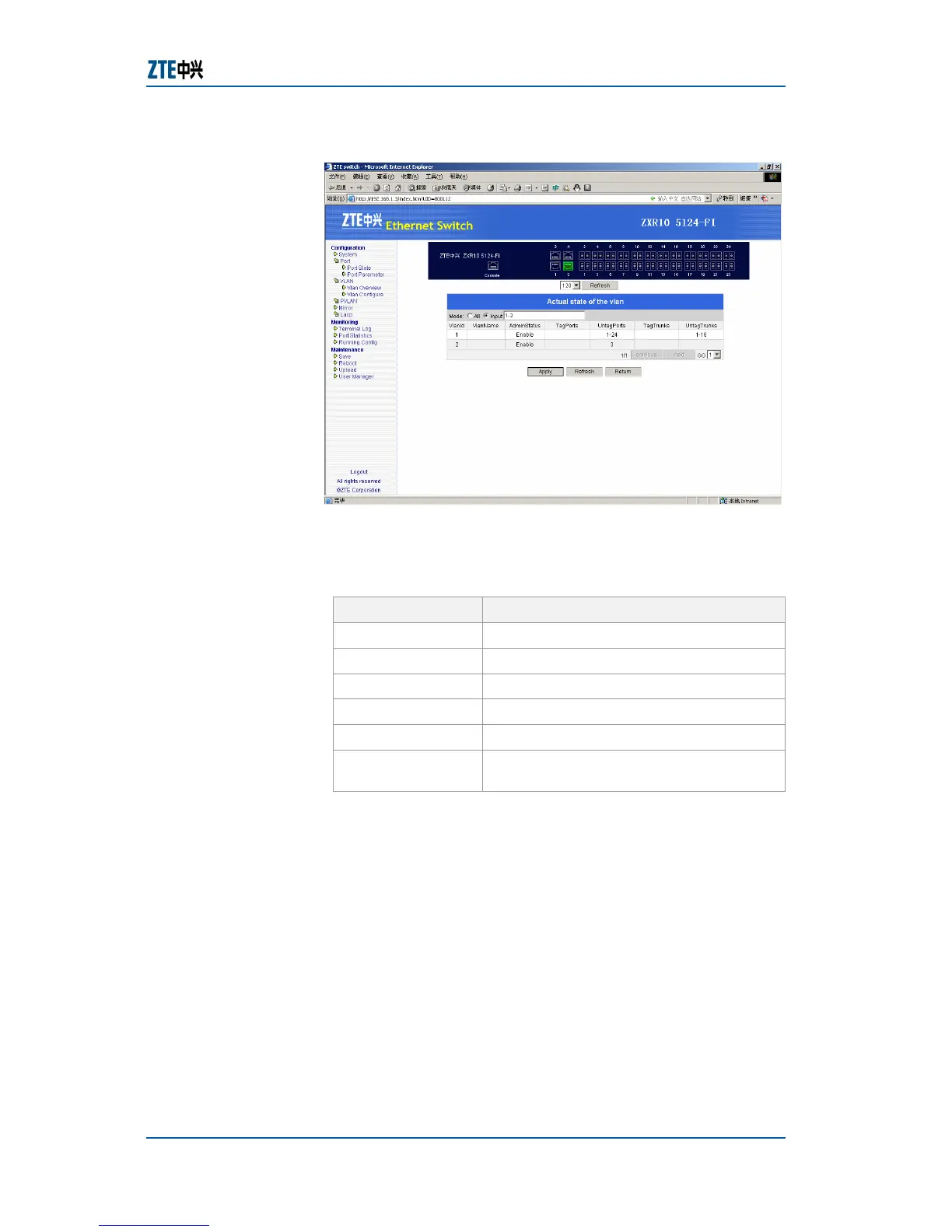

FIGURE 52 VLAN INFORMATION
f Table 430 defines parameters shown in Figure 52.
TABLE 430 PARAMETERS DESCRIPTION
Parameters Description
Vlan Name Name of Vlan
Admin Status Enable/Disable admin status
Tagged Port Select ports which are to be tagged
Untagged Port Select ports which are to be untagged
Tagged Trunk Select ports which are to be tagged trunk
Untagged Trunk Select ports which are to be untagged
trunk
2. To show specified VLAN information select the radio box
Input in the VLAN information page, then input the wanted
VLAN number in text column, such as “1, 3-5”; or select the
radio box All. Click Apply button to submit
Result: Vlan information is displayed.
Important! When there are more than 20 items, it will
show them page by page with the page number on the left of
the bottom. If there are more than one page, use the
previous or next button to switch, or choose the page
number directly in the Go column.
3. Click the catalog tree in the left of the system main page
Configuration > VLAN > Vlan Configure to open VLAN
number input page, as shown in
Figure 53.

Zte ZXR10 2928 Specifications

General

MAC Address Table Size	16K
VLAN	4K
Jumbo Frame	9K
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	< 30W
Dimensions	440mm x 200mm x 44mm
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
Ports	24 x 10/100/1000Base-T ports, 4 x GE SFP ports
