numbers and relationship between cabinets and between
rows.
Labels
Pattern and meanings of the labels attached to the connector:
Label attached to the connector is called transverse English
label on panels and connectors. Structure and dimensions
of the label is shown in
FIGURE 20 .

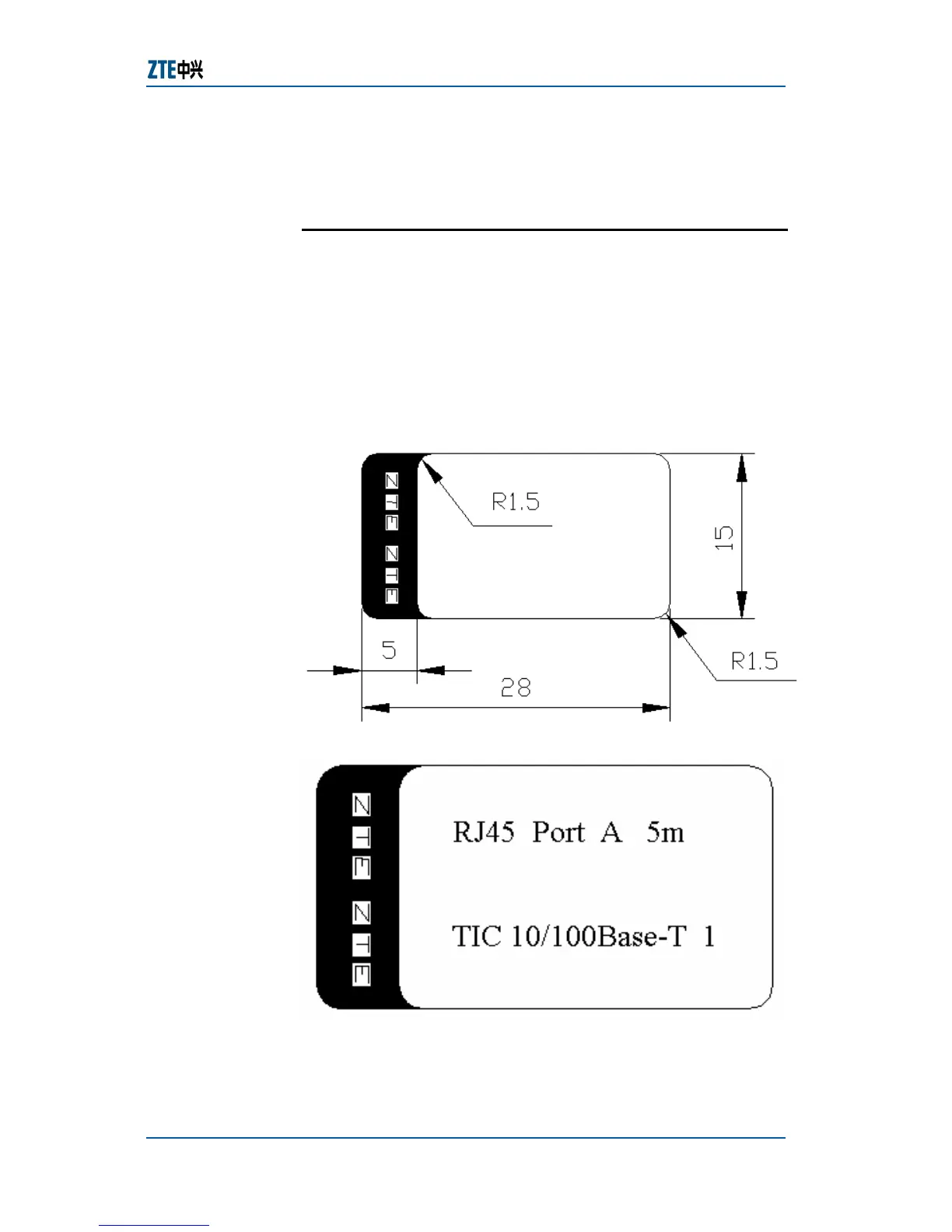

FIGURE 20 TRANSVERSE ENGLISH LABEL ON PANELS AND CONNECTORS
These contents are described in the following section:
