ZXR10 2920/2928/2952
(V1.0) Access Switch User Manual （Volume I）
30 Confidential and Proprietary Information of ZTE CORPORATION
RJ45——Cable code
Port A——End A of the cable connector, corresponding to
End B or another end.
5m——Length of the finished cable. It refers to the straight
line length of the cable from the connector at one end to the
connector at the other end.
TIC 10/100Base-T 1——Connection position, the first
10/100Base-T network port of the TIC board.
Pattern and meanings of the label attached to the cable:
Label attached to the cable is called roll-type self-cover laser
print label model II. Structure and dimensions of the label is
shown in
FIGURE 21 .

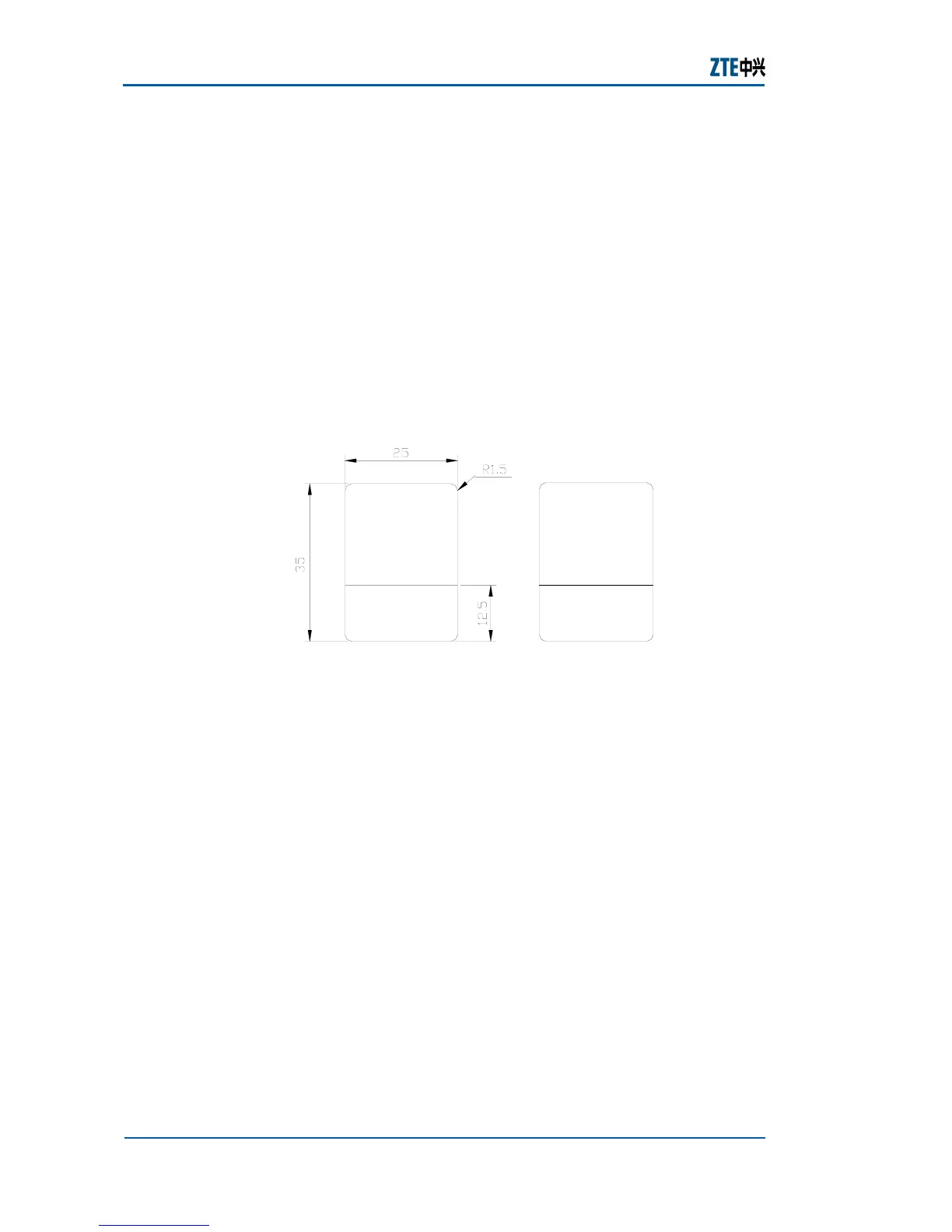

FIGURE 21 ROLL-TYPE SELF-COVER LASER PRINT LABEL MODEL II
Transparent area
Printable area
Transparent area
HD182 Port B 1.30m
#1-L5-DTI1 D25~32
Contents of the label in the above figure have same meanings as
those in
FIGURE 20 . These two types of labels are used in
different places.
Transverse English label on panels and connectors is only
applicable to the connectors where the attachment area is
larger than the label area or to panels.
Roll-up self-mulching laser printing label is rolled around the
cable with its own scotch adhesive tapes. It is used when
horizontal English label cannot be used because cable
connector is small.
Before the cabinet equipment is delivered, all the internal
interconnected cables shall be attached with flag-type direction
labels.
This label attached to the cable is called Transverse English Type
I Label. Structure and dimensions of label is shown in
Figure 15.
Label Features
