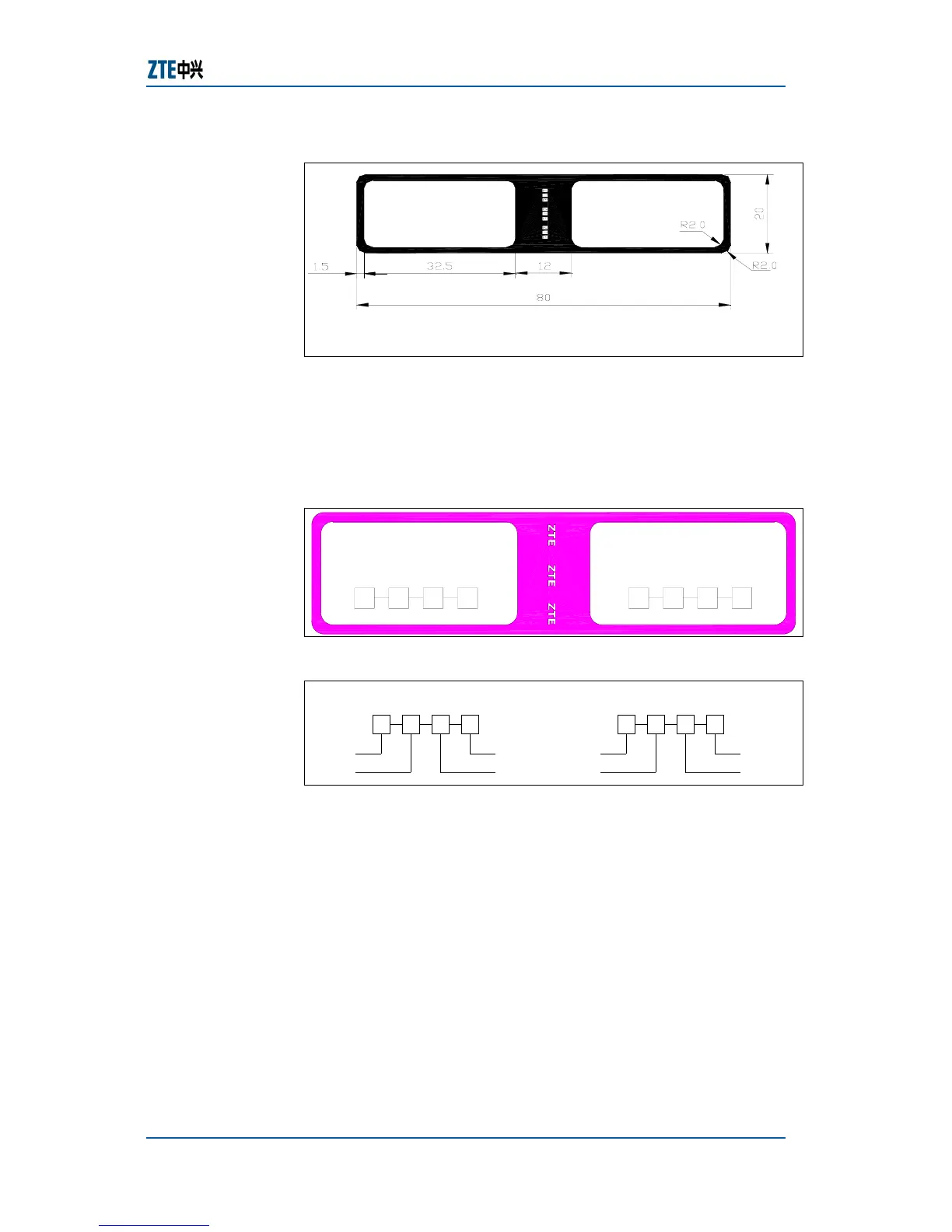

FIGURE 15 TRANSVERSE ENGLISH TYPE I LABEL
Meaning of the content and the structure of a fiber engineering
label is shown in
Figure 16.
FIGURE 16 PATTERN AND MEANINGS OF ENGINEERING LABEL ON OPTICAL
FIBER
Optical fible(R) Optical fible(L)
Layer No.
Serial No.Row No.
Rack No.
Fill in the
ODF.
Row No.
Serial No.
Column No
The side marked with
"L" must be filled in
The side marked with
"R" must be filled in
Two sides of the engineering label on the optical fiber are
marked “L” and “R” with the specific meanings given as follows:
 When label is pasted on fiber at ZXR10 2920/2928/2952 side,
row and column number of cabinet at side of connected
remote optical interface device as well as the layer No. of
the fiber in the cabinet and the fiber No. must be filled in
the R area of the label.
 In this case, row and column Nos.of ZXR10 2920/2928/2952
where the fiber is located as well as the layer No. of the fiber
and fiber number shall be filled in the L area of the label.
Engineering
Labels
