Chapter 9 Network Management
Confidential and Proprietary Information of ZTE CORPORATION 283

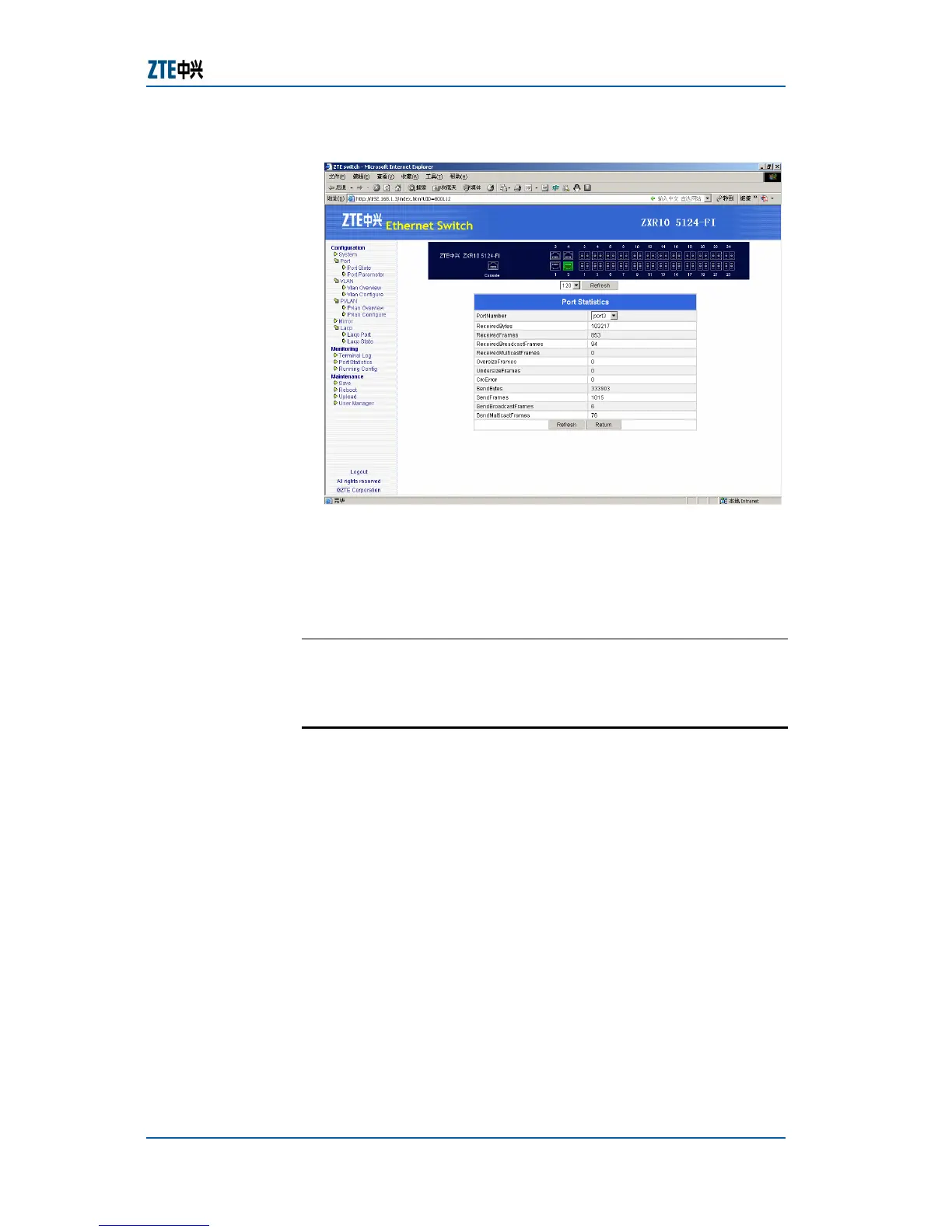

FIGURE 66 STATISTICAL INFORMATION
2. Click Refresh button in the page to update the port statistics
information.
3. Select the items in the PortNumber column to get the
statistics data on the port.
E
ND OF STEPS
This shows statistics data on the port.
Configuring Information
This topic describes to open the configuration of information.
For the opening of configuration of information, perform the
following step.
1. Click the catalog tree in the left of the system main page
Monitoring > Running config to open the configuration
information page, as shown in
Figure 67.
Result
Purpose
Steps

Zte ZXR10 2928 Specifications

General

MAC Address Table Size	16K
VLAN	4K
Jumbo Frame	9K
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	< 30W
Dimensions	440mm x 200mm x 44mm
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
Ports	24 x 10/100/1000Base-T ports, 4 x GE SFP ports
