ZXR10 2920/2928/2952
(V1.0) Access Switch User Manual Volume I
24 Confidential and Proprietary Information of ZTE CORPORATION
Power Cables Installation
Power cables are classified as per power supply module:
AC power cables
DC power cables
An AC power cable looks the same as standard printer power
cable, as shown in
Figure 12.

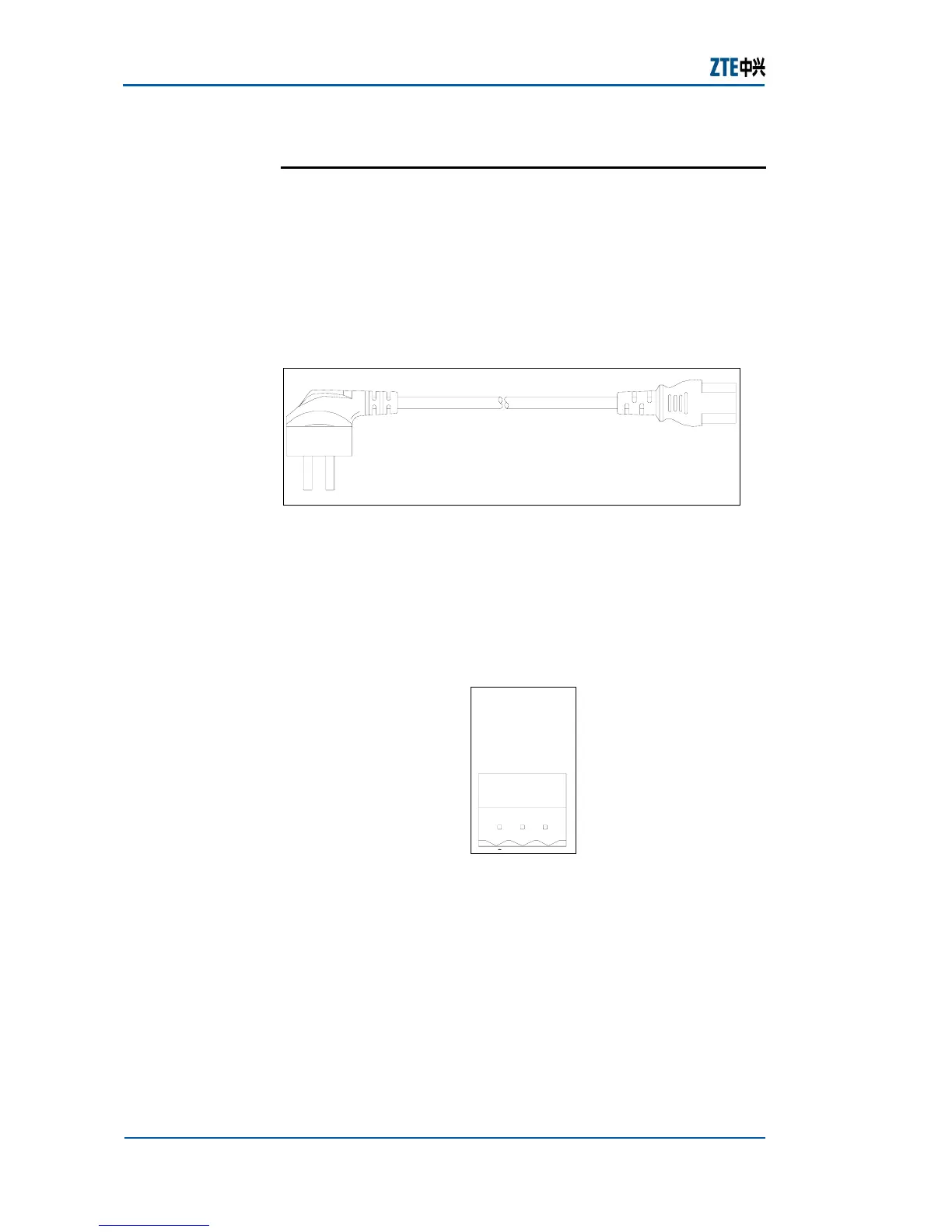

FIGURE 12 AC POWER CABLE
One end of the AC power cable connects the AC power socket of
the ZXR10 2920/2928/2952 power module and the other end
connects the 220 VAC power socket.
Appearance and description of -48V power socket on DC power
supply module of ZXR10 2920/2928/2952 is shown in
Figure 13.
FIGURE 13 -48 POWER SOCKET
D
-48VGND
-48V
GNDP
DC power cable is a 3-core power cable, as shown in
Figure 14.
AC power
cable
DC power
socket
DC power
Cable
