Chapter 9 Network Management
Confidential and Proprietary Information of ZTE CORPORATION 277

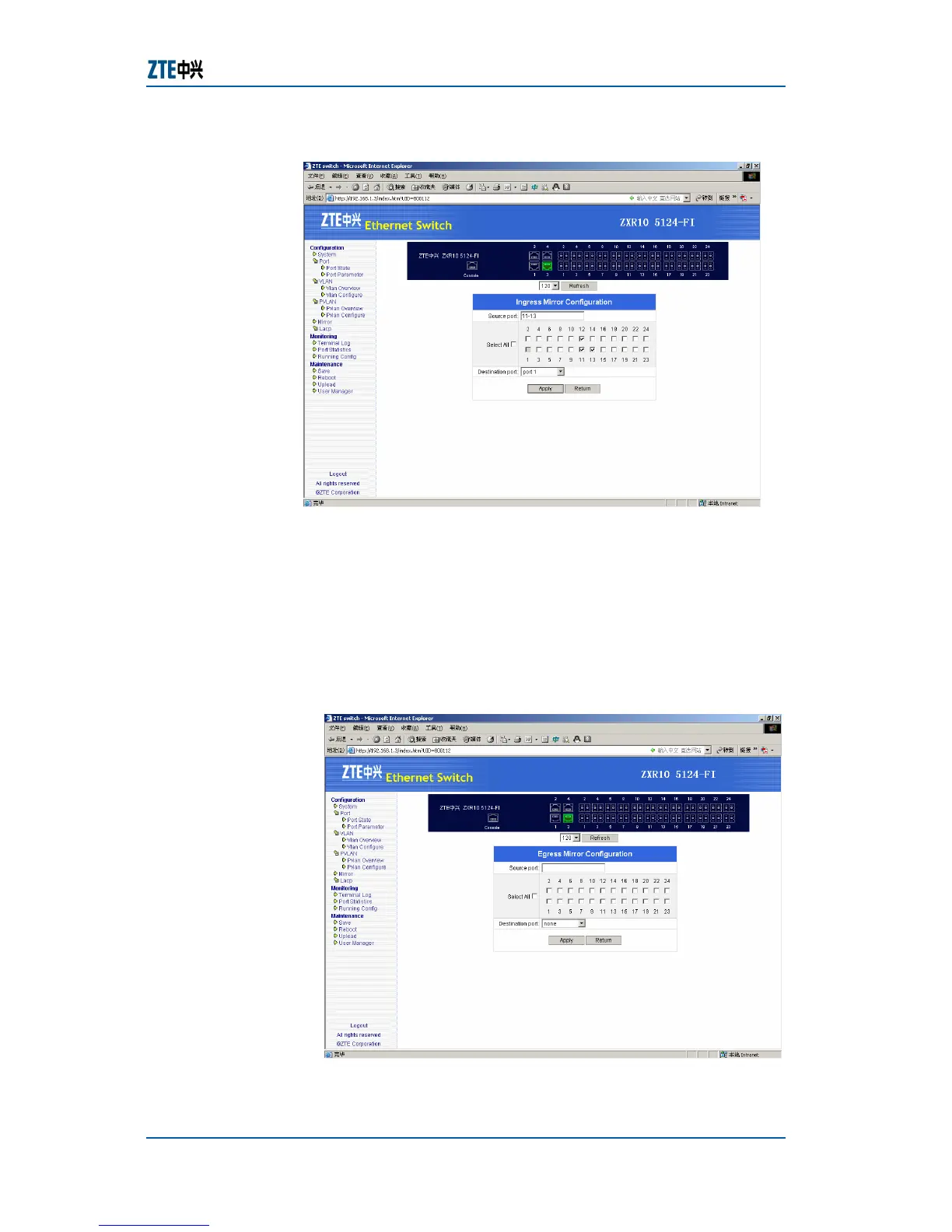

FIGURE 59 INGRESS PORT MIRROR
3. Configure destination and source port of ingress port mirror,
then click Apply button to submit.
Result: This configures destination and source port of
ingress port mirror.
4. Click Config link on the right of Egress column to open the
egress port mirror configuration page, as shown in
Figure 60.
FIGURE 60 EGRESS PORT MIRROR
