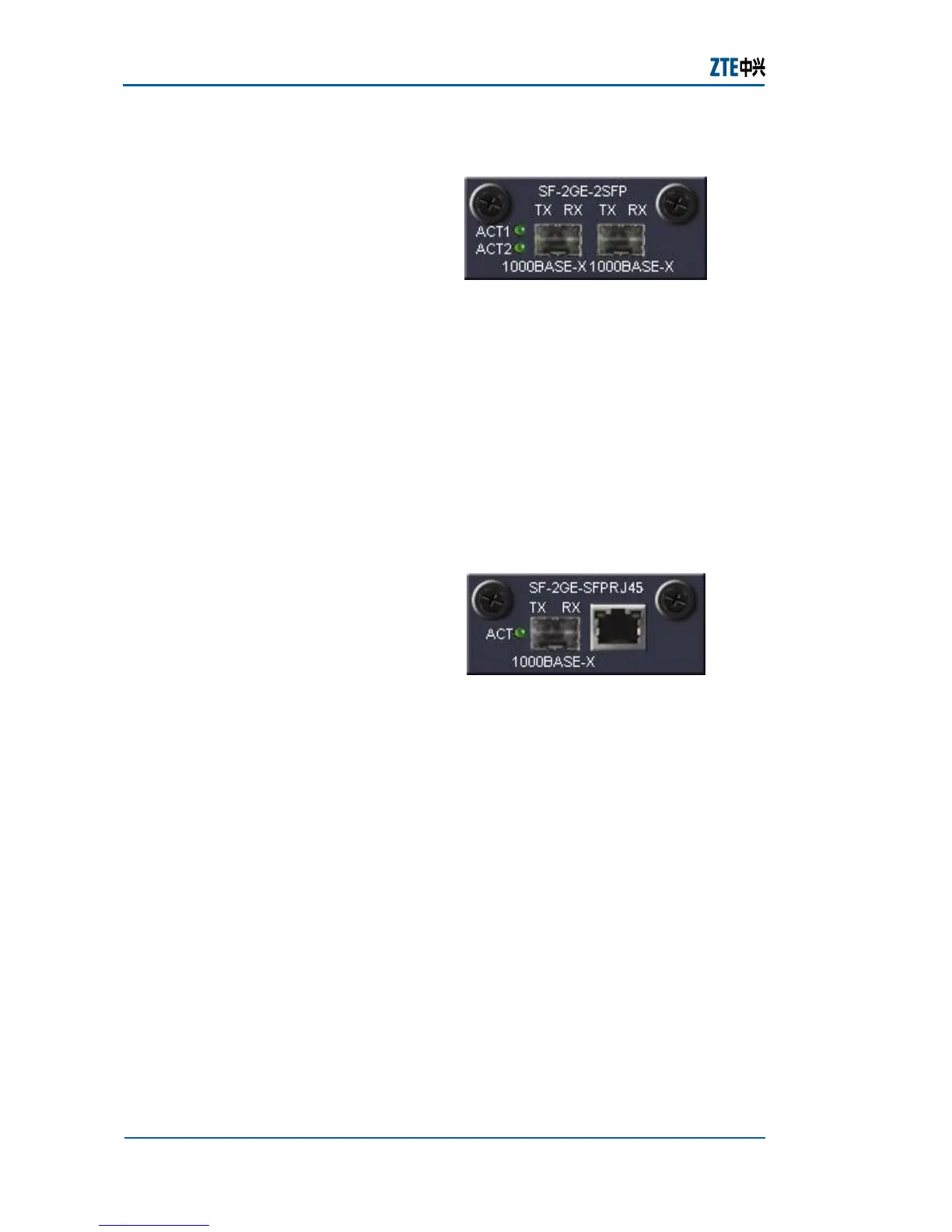

Figure 6 SF-2GE-2SFP subboard（FGFI）
There are 2 indicators on the FGFIpanel: ACT1&ACT2 ，
corresponding to the two gigabit light port. When the indicator
is on, it indicates that LINKis normal;if the indicator is flashing,
it indicates that data sending or receiving is underway.
FGFI subboard offers 1 gigabit Ethernet up-go light port + 1 gigabit
Ethernet up-go electrical port，& the type is SF-2GE-SFPRJ45, as
shown in.
figure 7
FIGURE 7 SF-2GE-SFPRJ45SUBBOARD（FGFE）
There are 3 indicators on the FGFIpanel. The gigabit Ethernet
up-go light port has an indicator ACT. When the indicator is on,
it indicates that LINKis normal;if the indicator is flashing, it
indicates that data sending or receiving is underway. The
gigabit Ethernet up-go electrical port has two indicators:one
is link activation indicator, & the other one is link status
indicator.
If the link activation indicator is flashing, it indicates that
data sending or receiving is underway.
When link status indicator is on, it indicates that the LINK is
normal.
Indicators
FGFE
Indicators
