1-11

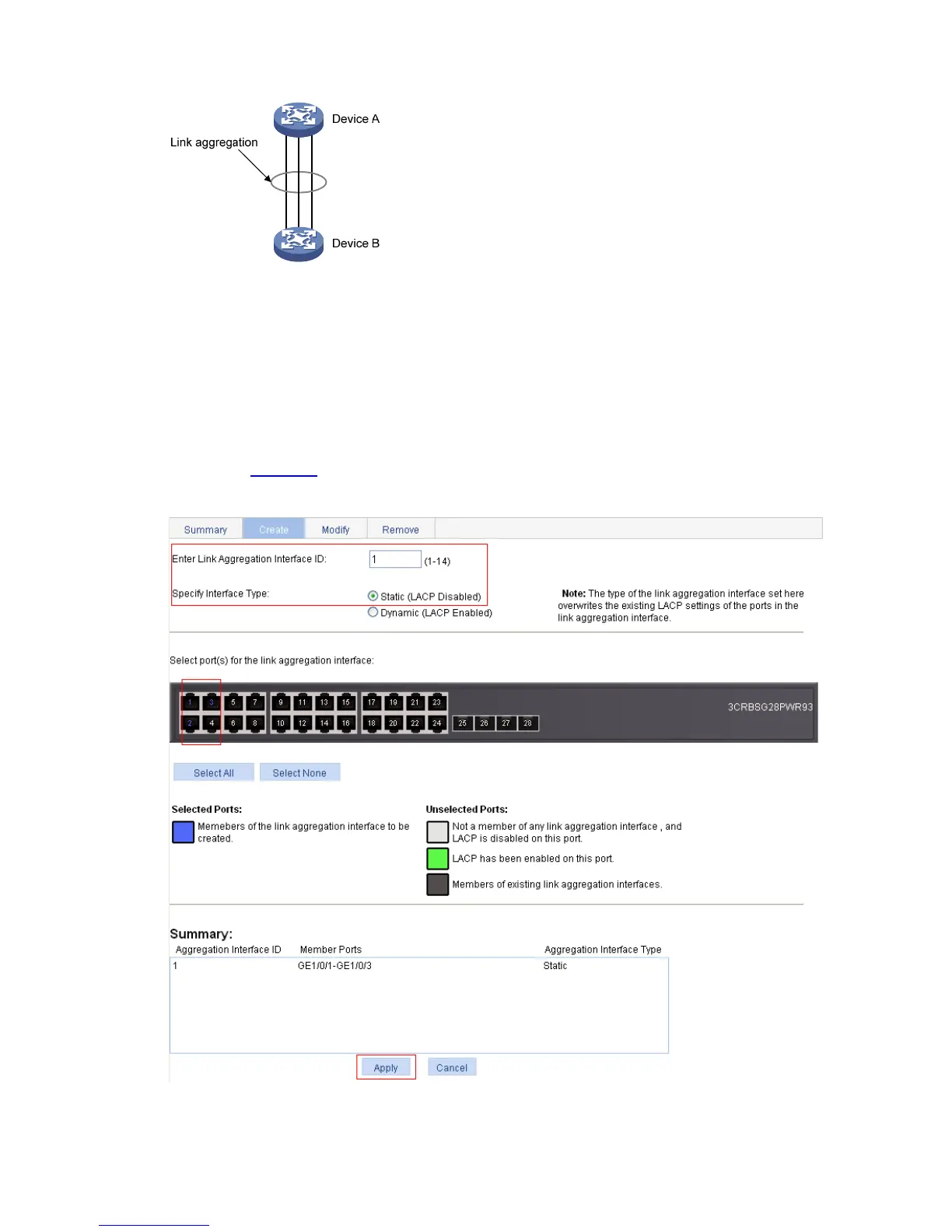

Figure 1-5 Network diagram for static link aggregation configuration
Configuration procedure
You can create a static or dynamic link aggregation group to achieve load balancing.
1) Approach 1: Create a static link aggregation group
# Create static link aggregation group 1.
Select Network > Link Aggregation from the navigation tree, and then click Create to enter the page
as shown in
Figure 1-6.
Figure 1-6 Create static link aggregation group 1
z Set the link aggregation interface ID to 1.
z Select the Static (LACP Disabled) option for the aggregate interface type.
