1-9
Item Description
Link Type
Set the link type of the selected ports, which can be access, hybrid, or trunk.
This item is available when the Link Type option is selected in the Select
membership type area.
PVID
Delete
Set the PVID of the select ports; selecting Delete is to restore the default
VLAN, VLAN 1, of the ports.
This item is available when the PVID option is selected in the Select
membership type area.
Return to
VLAN configuration task list (approach II).
VLAN Configuration Example
Network requirements
z Trunk port GigabitEthernet 1/0/1 of Switch A is connected to trunk port GigabitEthernet 1/0/1 of
Switch B.
z The default VLAN of GigabitEthernet 1/0/1 is VLAN 100.
z GigabitEthernet 1/0/1 permits packets of VLAN 2, VLAN 6 through VLAN 50, and VLAN 100 to
pass through.

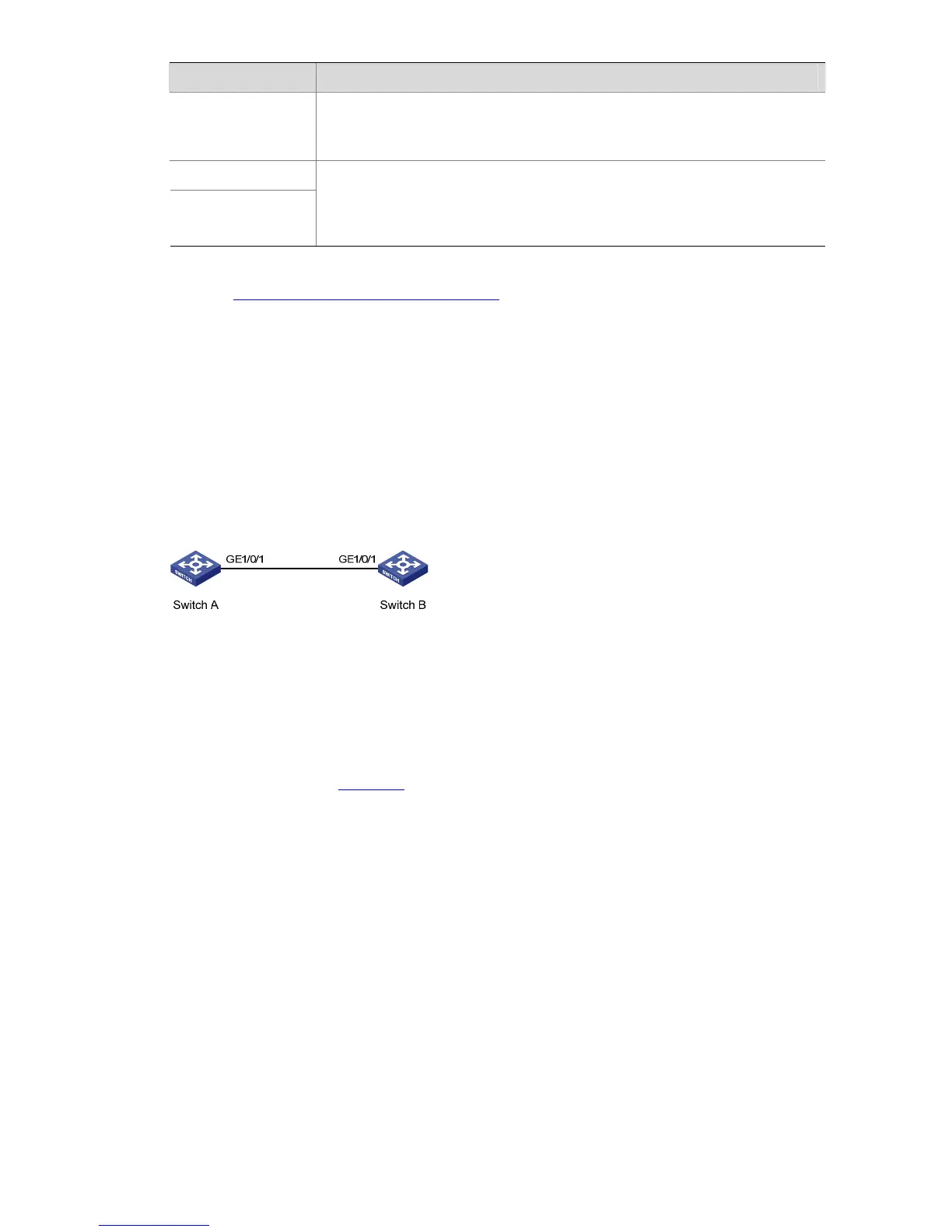

Figure 1-8 Network diagram for VLAN configuration
Configuration procedure
1) Configure Switch A
# Configure GigabitEthernet 1/0/1 as a trunk port and configure VLAN 100 as its default VLAN.
Select Device > Port Management from the navigation tree and click Setup to enter the page for
setting ports, as shown in
Figure 1-9.
