1-19
z Select system from the Name drop-down list to use it as the authentication scheme.
z Click Apply. A configuration progress dialog box appears, as shown in Figure 1-20.

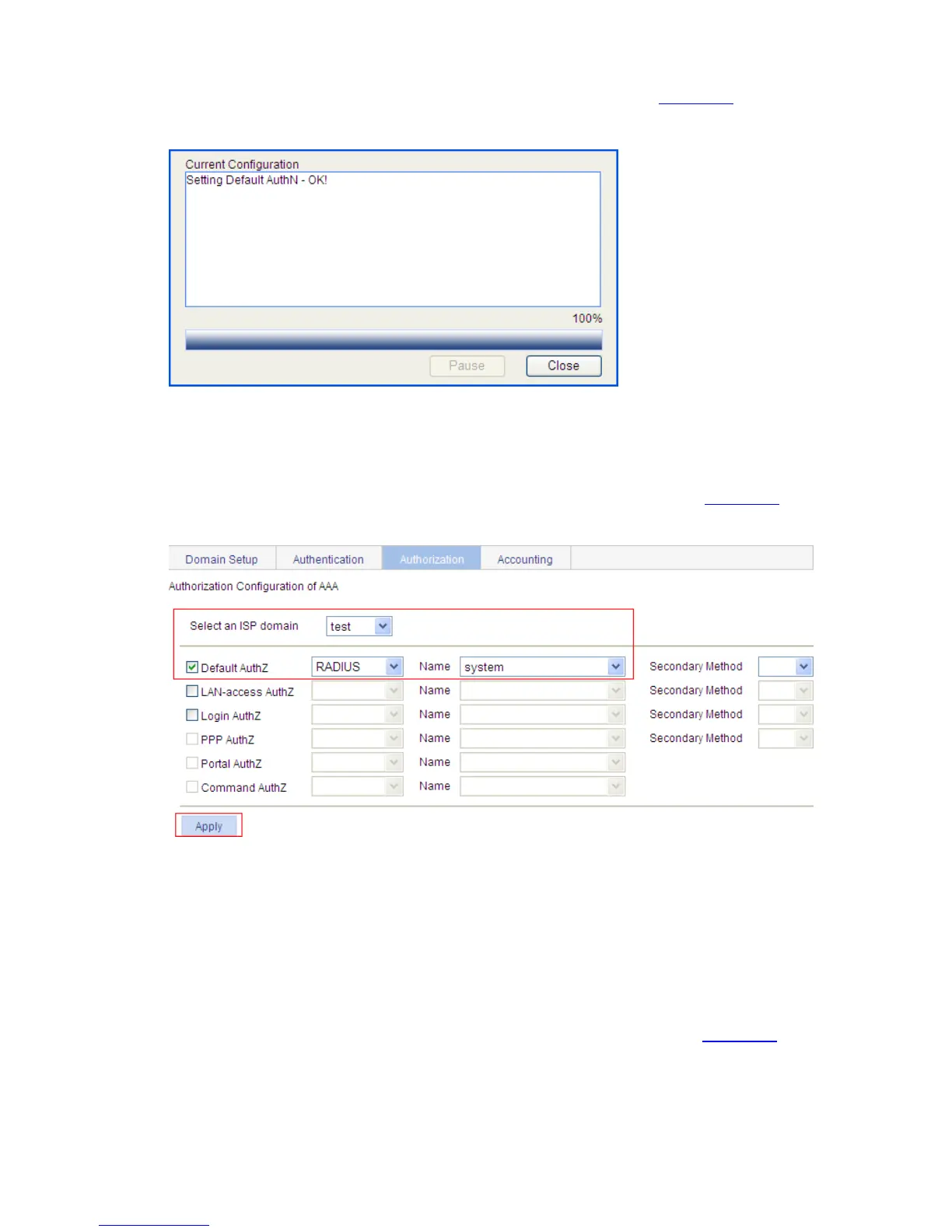

Figure 1-20 Configuration progress dialog box
z After the configuration process is complete, click Close.
# Configure the AAA authorization method for the ISP domain.
z Select the Authorization tab. Perform the following configuration as shown in Figure 1-21.
Figure 1-21 Configure the AAA authorization method for the ISP domain
z Select the domain name test.
z Select the Default AuthZ checkbox and then select RADIUS as the authorization mode.
z Select system from the Name drop-down list to use it as the authorization scheme.
z Click Apply. A configuration progress dialog box appears.
z After the configuration process is complete, click Close.
# Configure the AAA accounting method for the ISP domain.
z Select the Accounting tab. Perform the following configurations, as shown in Figure 1-22.
