1-12

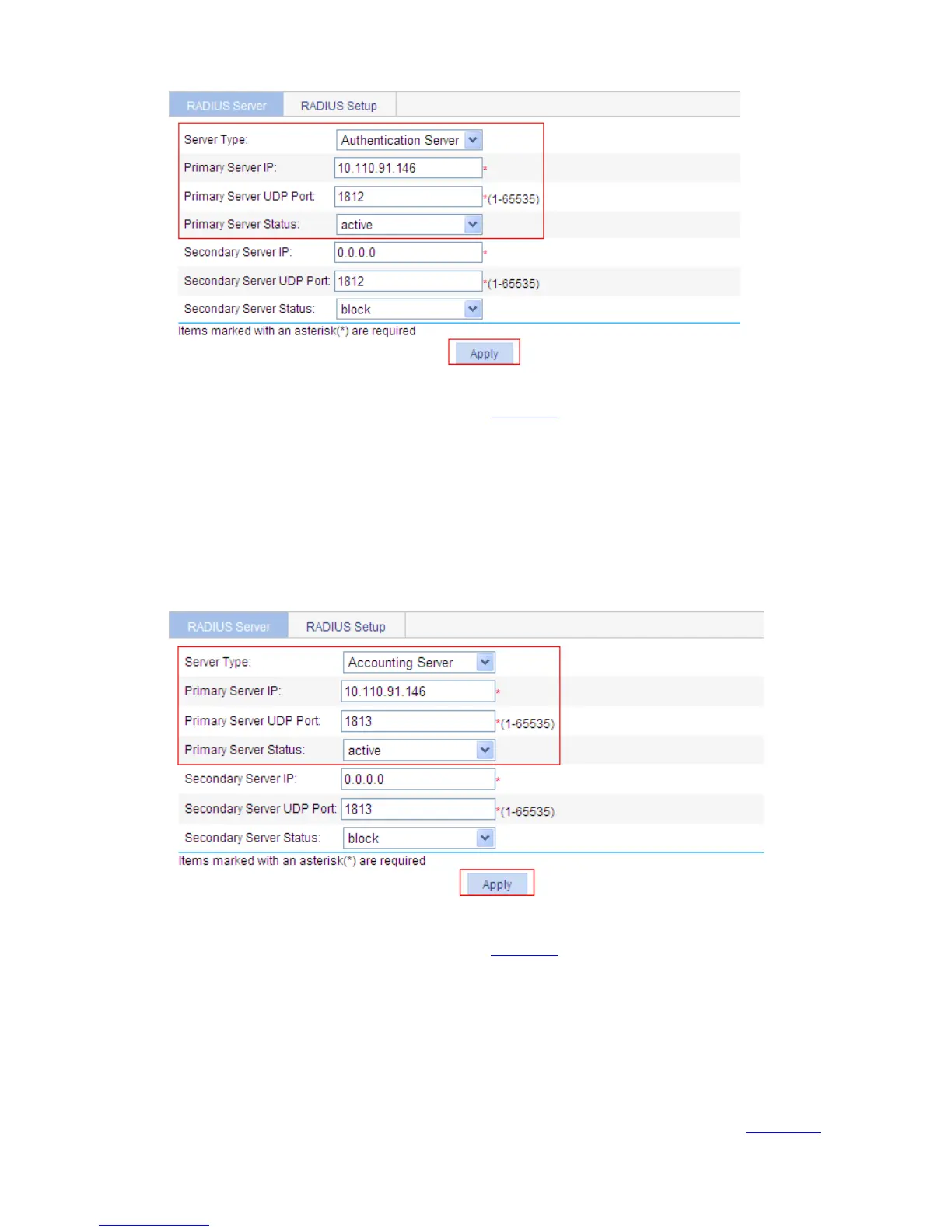

Figure 1-8 Configure the RADIUS authentication server
Perform the following configurations, as shown in
Figure 1-8.
z Select Authentication Server as the server type.
z Enter 10.110.91.146 as the IP address of the primary authentication server
z Enter 1812 as the UDP port of the primary authentication server.
z Select active as the primary server status.
z Click Apply.
# Configure the RADIUS accounting server.
Figure 1-9 Configure the RADIUS accounting server
Perform the following configurations, as shown in
Figure 1-9.
z Select Accounting Server as the server type.
z Enter 10.110.91.146 as the IP address of the primary accounting server.
z Enter 1813 as the UDP port of the primary accounting server.
z Select active as the primary server status.
z Click Apply.
# Configure the parameters for communication between the switch and the RADIUS servers.
z Select the RADIUS Setup tab and perform the following configurations, as shown in Figure 1-10.
