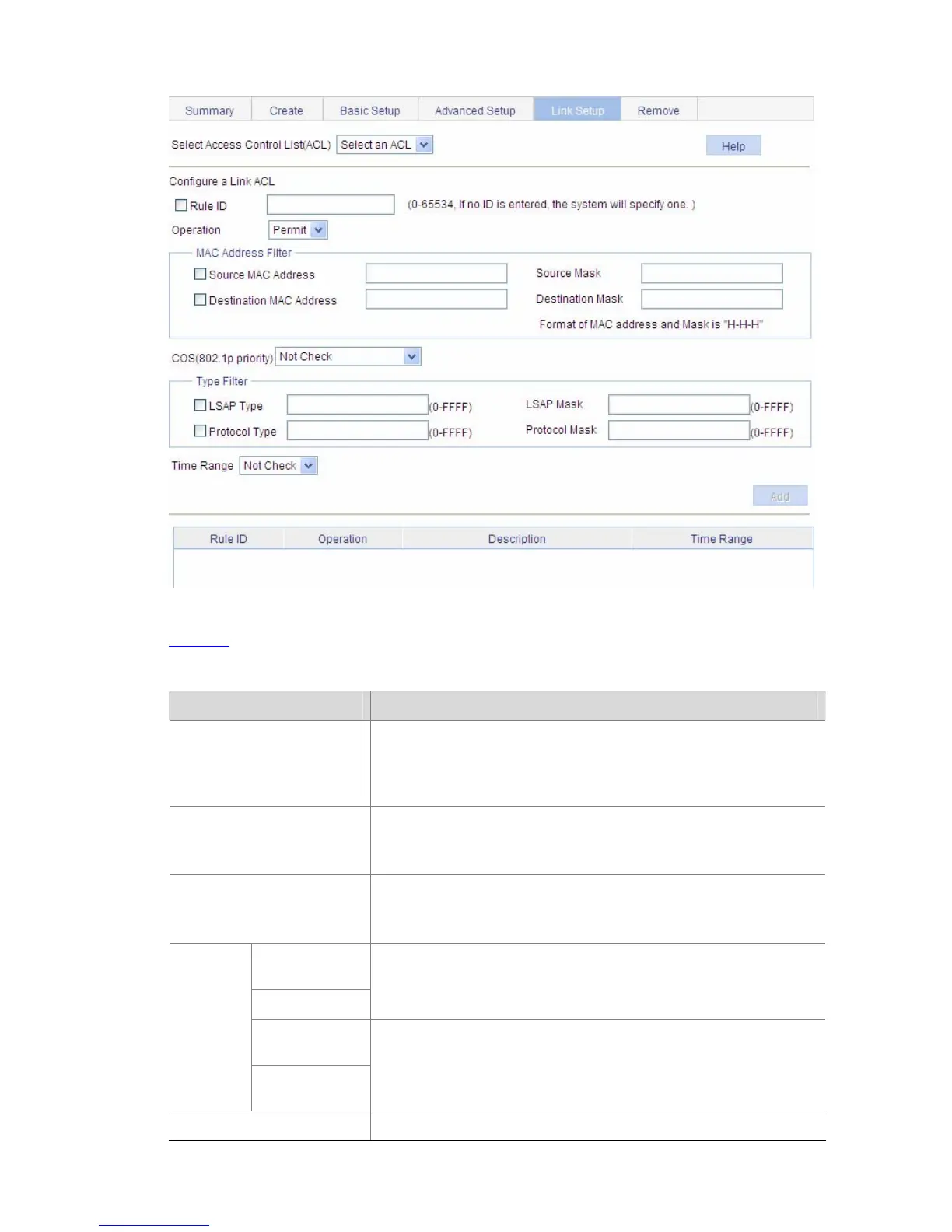

Figure 1-5 The page for configuring a rule for an Ethernet frame header ACL
Table 1-8 describes the configuration items for creating a rule for an Ethernet frame header IPv4 ACL.
Table 1-8 Configuration items for an Ethernet frame header IPv4 ACL rule
Item Description
Select Access Control List
(ACL)
Select the Ethernet frame header IPv4 ACL for which you want to
configure rules.
Available ACLs are Ethernet frame header IPv4 ACLs that have
been configured.
Rule ID
Select the Rule ID option and type a number for the rule.
If you do not specify the rule number, the system will assign one
automatically.
Operation
Select the operation to be performed for packets matching the rule.
z Permit: Allows matched packets to pass.
z Deny: Drops matched packets.
Source MAC
Address
Source Mask
Select the Source MAC Address option and type a source MAC
address and a mask.
Destination
MAC Address
MAC
Address
Filter
Destination
Mask
Select the Destination MAC Address option and type a destination
MAC address and a mask.
COS(802.1p precedence) Specify the 802.1p precedence for the rule.
