3-2

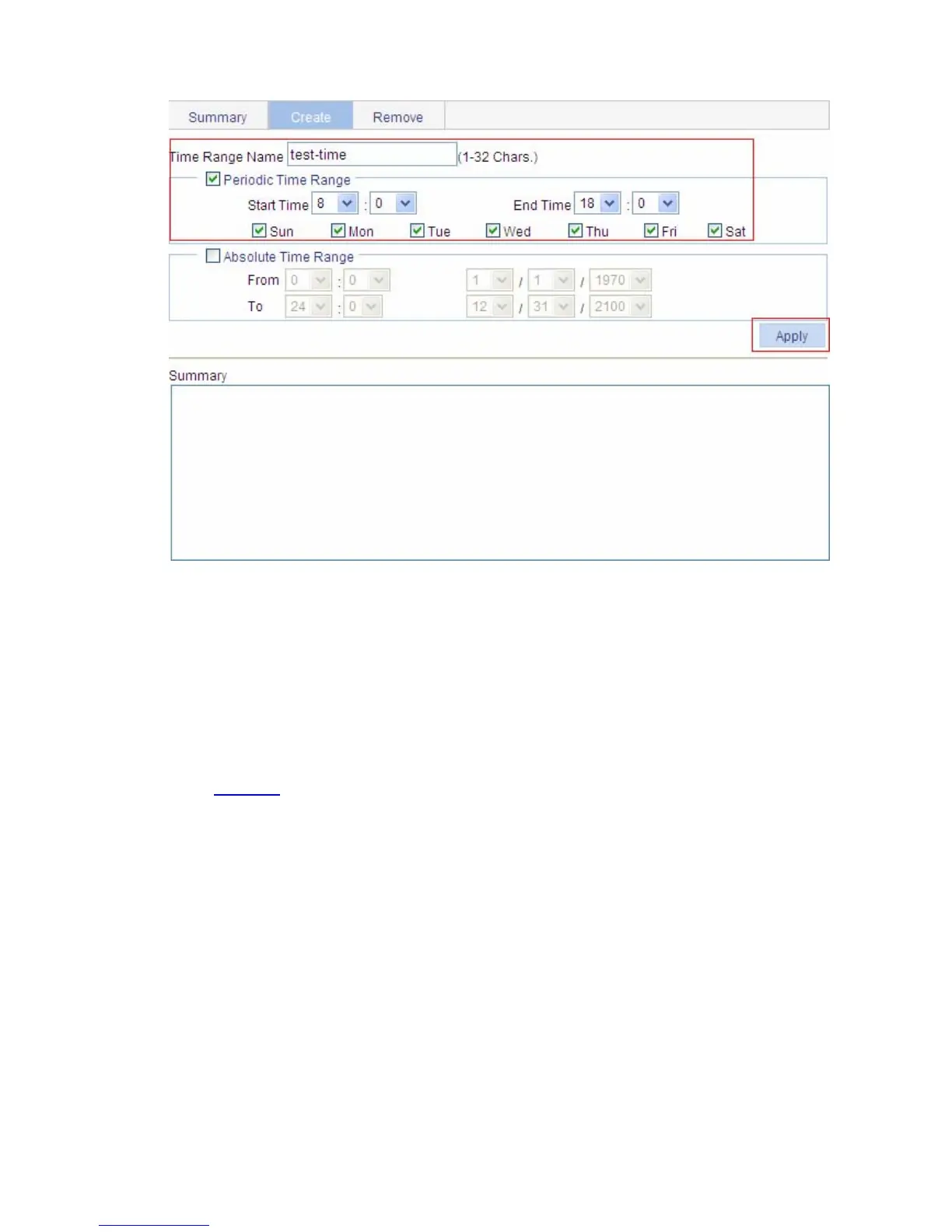

Figure 3-2 Define a time range covering 8:00 to 18:00 every day
z Type the time range name test-time.
z Select the Periodic Time Range option, set the Start Time to 8:00 and the End Time to 18:00,
and then select the checkboxes Sun through Sat.
z Click Apply.
2) Define an IPv4 ACL for traffic to the FTP server.
# Create an advanced IPv4 ACL.
z Select QoS > ACL IPv4 from the navigation tree and click Create. Perform configuration as shown
in
Figure 3-3.
