3-6

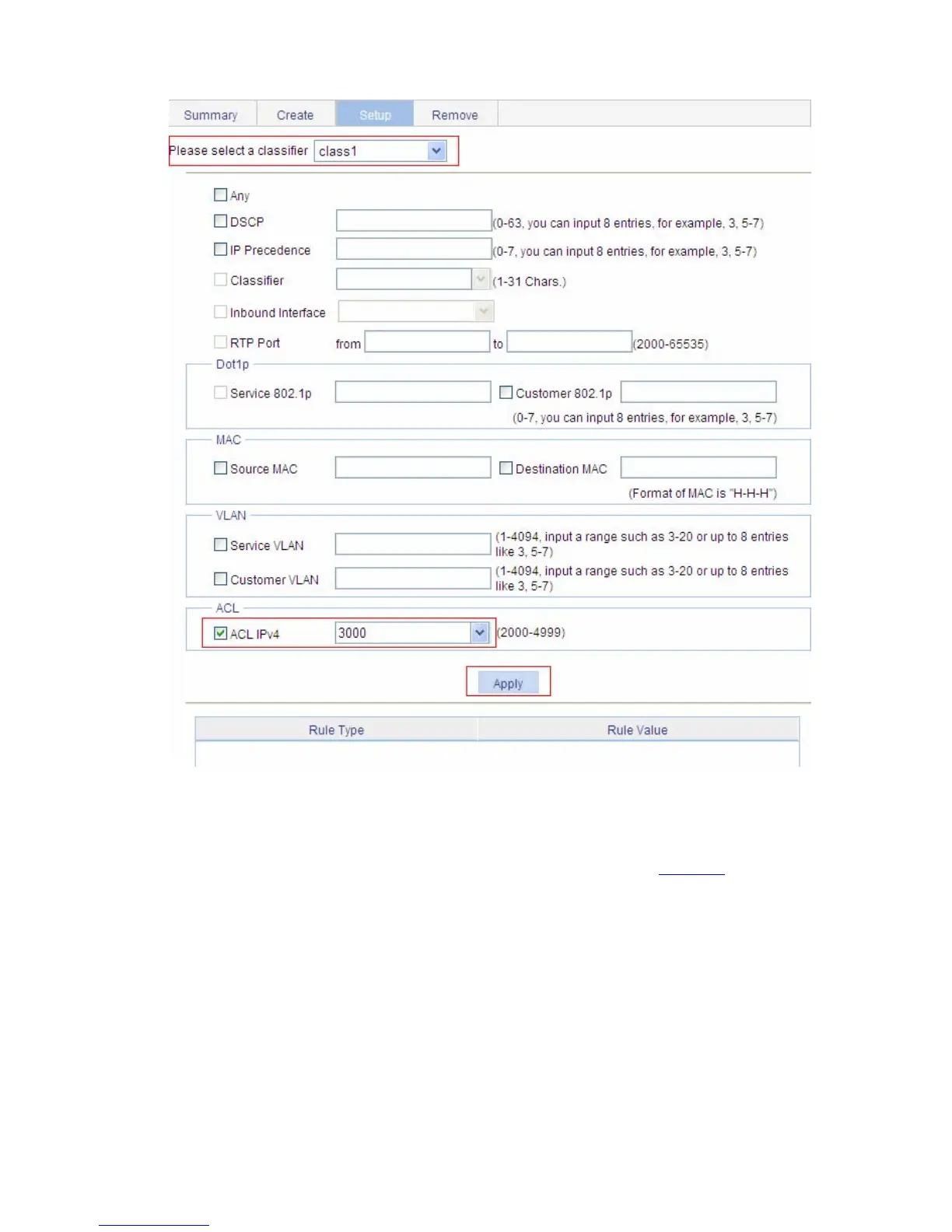

Figure 3-6 Define classification rules
z Select the class name class1 in the drop-down list.
z Select the ACL IPv4 option, and select ACL 3000 in the following drop-down list.
z Click Apply. A configuration progress dialog box appears, as shown in Figure 3-7.
