ABB ACS880 - Motor Current % of; Motor Torque; DC Voltage

Def / Type
FbEq 16b / 32b
DescriptionName / Range /
Selection
No.
4
1.7 Motor current (page 136).
Motor current
6
1.10 Motor torque (page 136).
Motor torque
7
1.11 DC voltage (page 136).
DC voltage
8
1.14 Output power (page 137).
Power inu out
10
23.1 Speed ref ramp input (page 271).
Speed ref ramp in
11
23.2 Speed ref ramp output (page 271).
Speed ref ramped
12
24.1 Used speed reference (page 278).
Speed ref used
13
26.2 Torque reference used (page 296).
Torq ref used
14
28.2 Frequency ref ramp output (page 305).
Freq ref used
16
40.1 Process PID output actual (page 375).
Process PID out
17
40.2 Process PID feedback actual (page 375).
Process PID fbk
18
40.3 Process PID setpoint actual (page 375).
Process PID act
19
40.4 Process PID deviation actual (page 375).
Process PID dev
See Terms and abbreviations (page 132).
Other
0.000 / real32Defines the real value of the signal (selected by parameter
11.55 Freq out 1 source and shown by parameter 11.54
Freq out 1 actual value) that corresponds to the minimum
value of frequency output 1 (defined by parameter 11.60
Freq out 1 at src min).

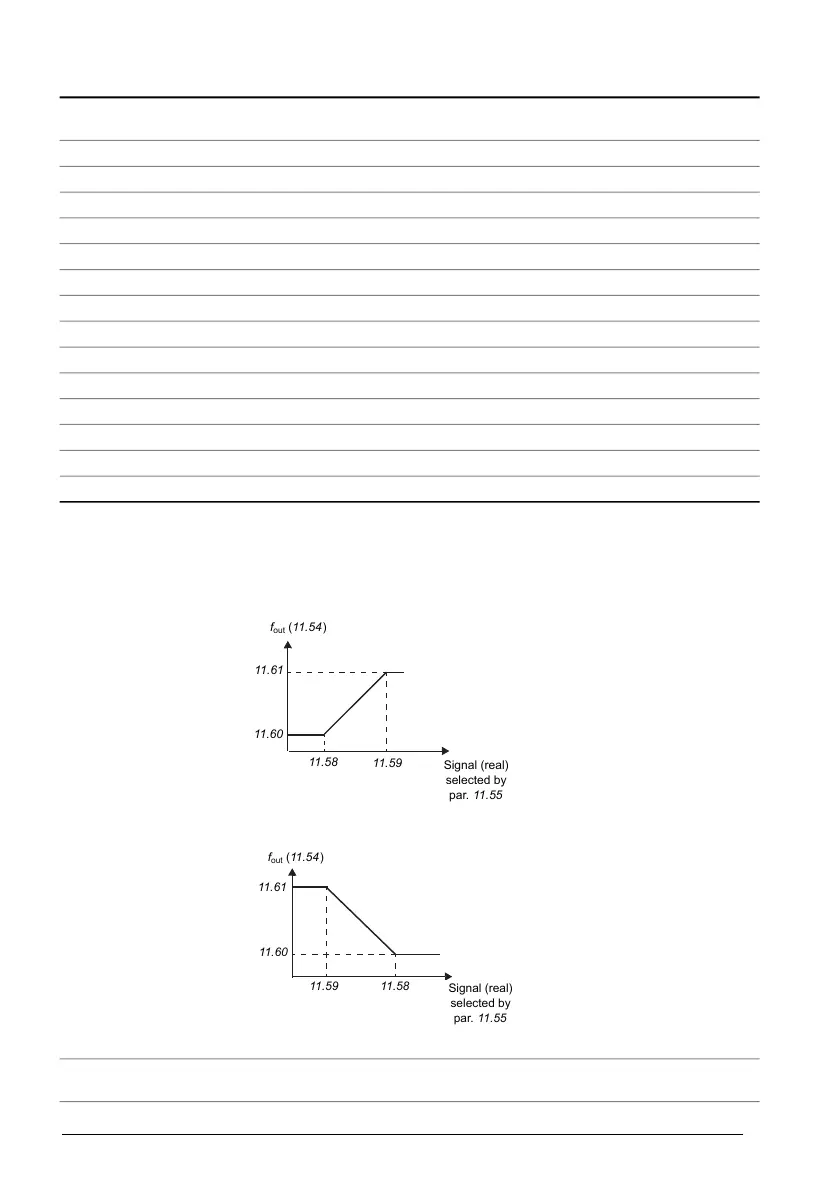

f
out
(11.54)
11.61
11.60
11.58
11.59
Signal (real)
selected by
par. 11.55
f
out
(11.54)
11.61
11.60
11.59 11.58
Signal (real)
selected by
par. 11.55
Freq out 1 src min11.58
1 = 1 / 1000 = 1Real signal value corresponding to minimum value of
frequency output 1.
-32768.000 ...
32767.000
186 Parameters
