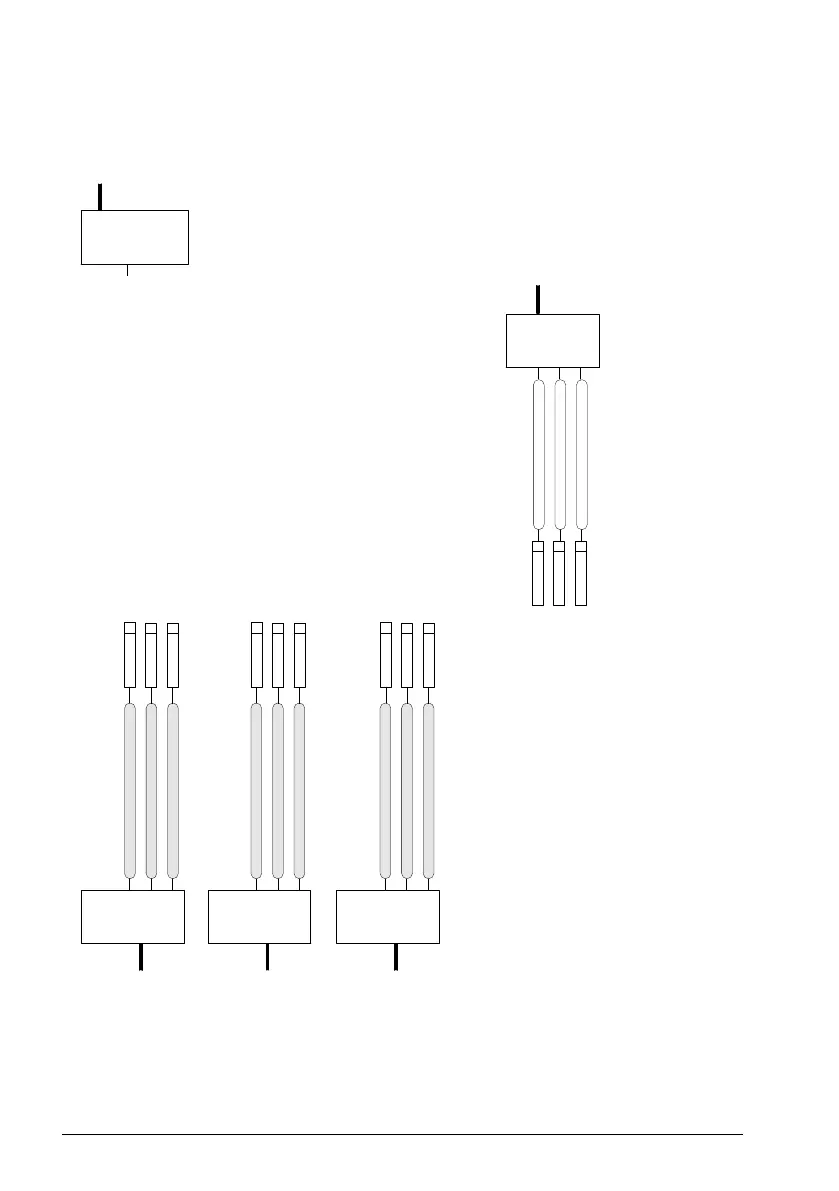

Master/Follower communication I (Master)
Signal selection for Master’s broadcast message
Follower node 2 receive
62.28 Follower node 2 data 1 value 62.29 Follower node 2 data 2 value 62.30 Follower node 2 data 3 value
DS44.1 DS44.2 DS44.3
Dataset receive
MF link
Follower node 3 receive
DS46.1 DS46.2 DS46.3
Dataset receive
MF link
Follower node 4 receive
DS48.1 DS48.2 DS48.3
Dataset receive
MF link
62.31 Follower node 3 data 1 value 62.32 Follower node 3 data 2 value 62.33 Follower node 3 data 3 value 62.34 Follower node 4 data 1 value 62.35 Follower node 4 data 2 value 62.36 Follower node 4 data 3 value
Selection
>
62.04 Follower node 2 data 1 sel
Selection
>
62.05 Follower node 2 data 2 sel
Selection
>
62.06 Follower node 2 data 3 sel
Selection
>
62.07 Follower node 3 data 1 sel
Selection
>
62.08 Follower node 3 data 2 sel
Selection
>
62.09 Follower node 3 data 3 sel
Selection
>
62.10 Follower node 4 data 1 sel
Selection
>
62.11 Follower node 4 data 2 sel
Selection
>
62.12 Follower node 4 data 3 sel
DS41.1 DS41.2 DS41.3
MF link61.01 M/F data 1 selection
Selection
>
Selection
>
Selection
>
61.02 M/F data 2 selection 61.03 M/F data 3 selection
61.25 M/F data 1 value 61.26 M/F data 2 value 61.27 M/F data 3 value
Dataset transmit
Master setup config
MF link
Group 60
