￭ Actual values
The ABB Drives profile supports the use of two fieldbus actual values, ACT1 and ACT2.
The actual values are 16-bit words each containing a sign bit and a 15-bit integer. A
negative value is formed by calculating the two’s complement from the corresponding
positive value.

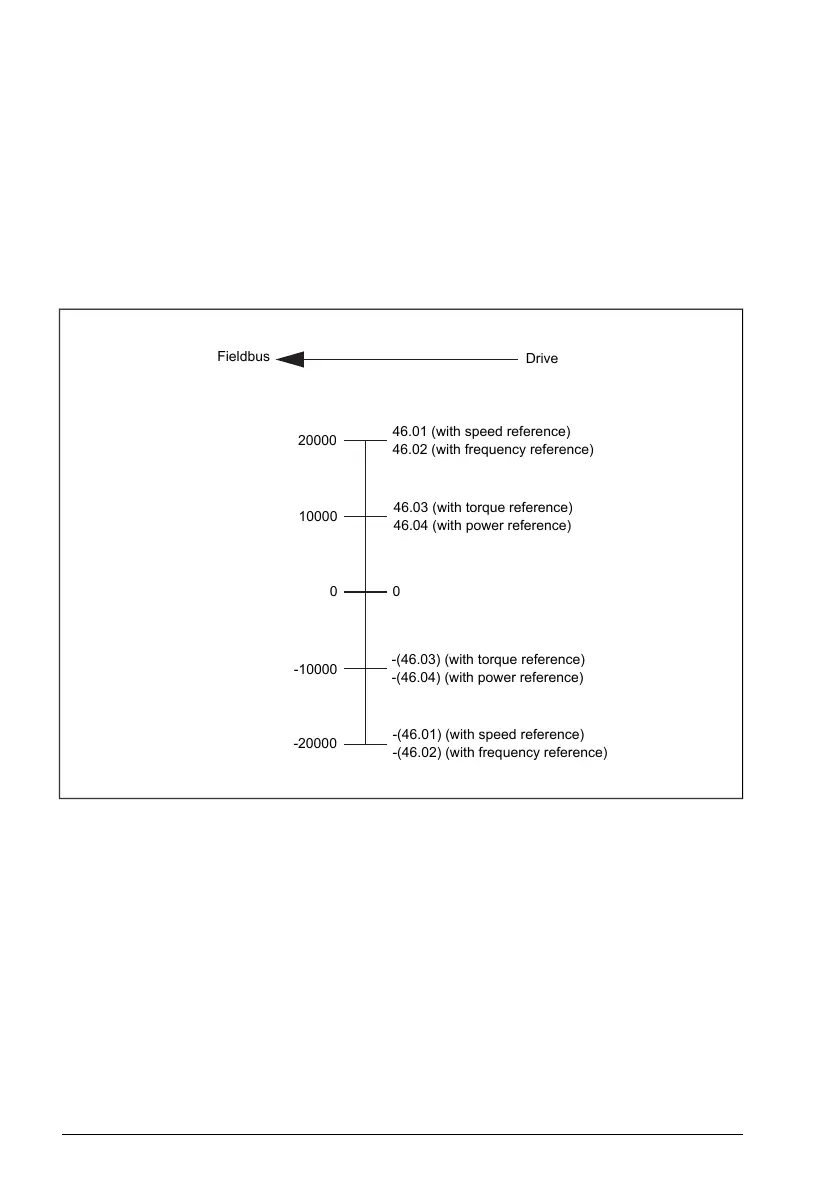

The actual values are scaled as defined by parameters 46.01...46.04; which scaling is
in use depends on the setting of parameters 58.28 EFB act1 type and 58.29 EFB act2
type (page 437).
Fieldbus
Drive
20000
10000
0
-10000
-20000
46.01 (with speed reference)
46.02 (with frequency reference)
46.03 (with torque reference)
46.04 (with power reference)
-(46.03) (with torque reference)
-(46.04) (with power reference)
-(46.01) (with speed reference)
-(46.02) (with frequency reference)
0
602 Fieldbus control through the embedded fieldbus interface (EFB)
