Drive configuration and programming

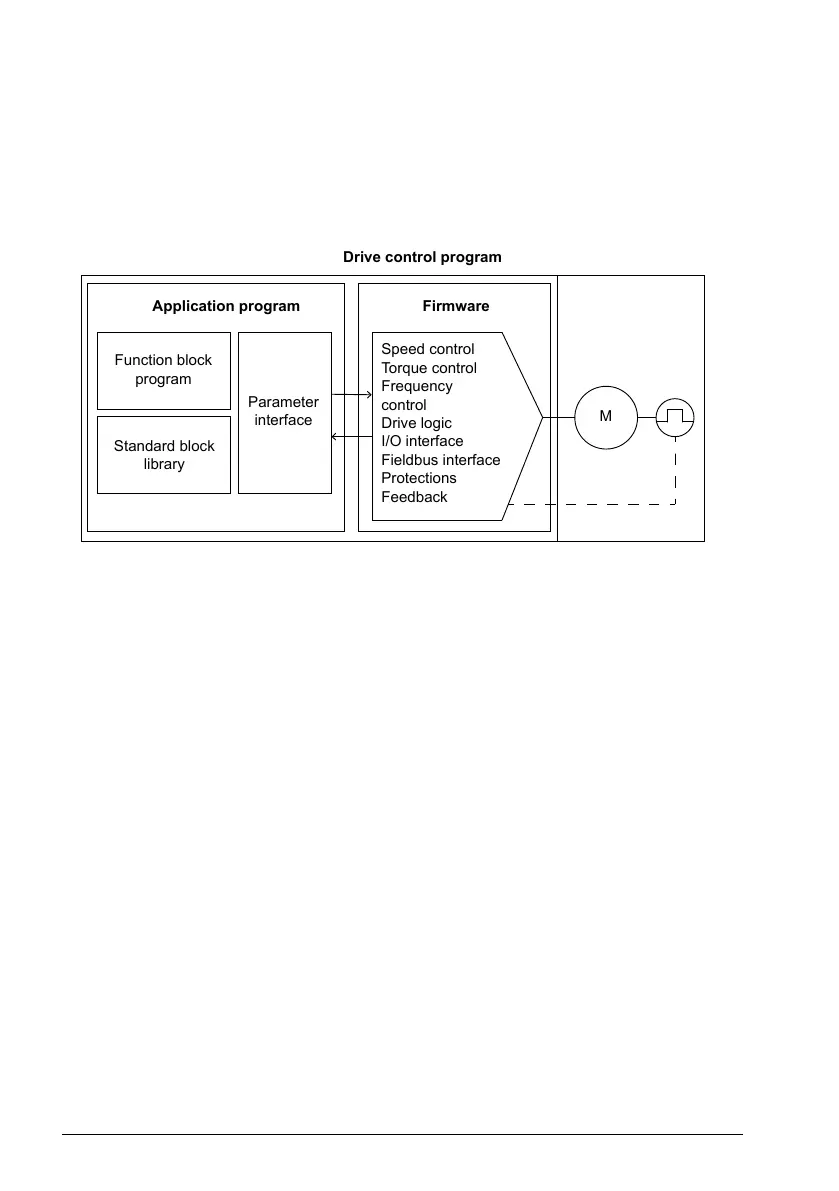

The drive control program is divided into two parts:
• firmware program
• application program
Application program
Firmware
Function block
program
Standard block
library
Parameter
interface
Speed control
Torque control
Frequency
control
Drive logic
I/O interface
Fieldbus interface
Protections
Feedback
M
Drive control program
The firmware program performs the main control functions, including speed and torque
control, drive logic (start/stop), I/O, feedback, communication and protection functions.
Firmware functions are configured and programmed with parameters, and can be
extended by application programming.
￭ Programming via parameters
Parameters configure all of the standard drive operations and can be set through
•
the control panel, as described in chapter Using the control panel
•
the Drive Composer PC tool, as described in Drive Composer start-up and
maintenance PC tool user’s manual (3AUA0000094606 [English]), or
•
the fieldbus interface, as described in chapters Fieldbus control through the
embedded fieldbus interface (EFB) and Fieldbus control through a fieldbus adapter.
All parameter settings are stored automatically to the permanent memory of the drive.
However, if an external +24 V DC power supply is used for the drive control unit, it is
highly recommended to force a save by using parameter 96.7 before powering down
the control unit after any parameter changes have been made.
If necessary, the default parameter values can be restored by parameter 96.6.
