in the drive. The same value should then appear in the PLC after having been read from
the drive.
Settings and diagnostics
Parameter groups 90 Feedback selection (page 472), 91 Encoder module
settings (page 482), 92 Encoder 1 configuration (page 486) and 93 Encoder 2
configuration (page 494).
￭ Jogging
The jogging function enables the use of a momentary switch to briefly rotate the motor.
The jogging function is typically used during servicing or commissioning to control the
machinery locally.
Two jogging functions (1 and 2) are available, each with their own activation sources
and references. The signal sources are selected by parameters 20.26 and 20.27. When
jogging is activated, the drive starts and accelerates to the defined jogging speed (22.42
or 22.43) along the defined jogging acceleration ramp (23.20). After the activation signal
switches off, the drive decelerates to a stop along the defined jogging deceleration ramp
(23.21).

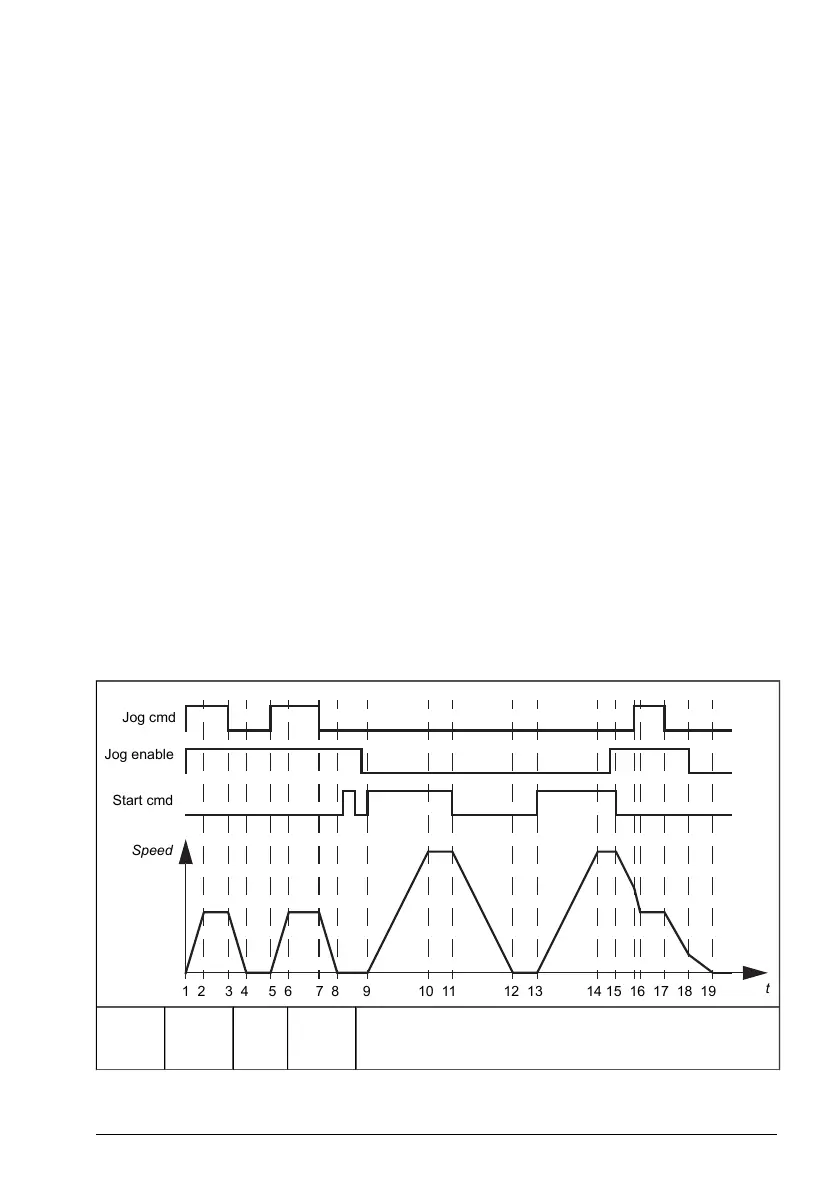

The figure and table below provide an example of how the drive operates during jogging.
In the example, the ramp stop mode is used (see parameter 21.3).
•
Jog cmd = State of source set by parameter 20.26 or 20.27
•
Jog enable = State of source set by parameter 20.25
• Start cmd = State of drive start command.
Jog cmd
Jog enable
Start cmd
Speed
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
t
DescriptionStart
cmd
Jog
en-
able
Jog
cmd
Phase
Program features 61
