￭ References
The ABB drives profile supports the use of two references, EFB reference 1 and EFB
reference 2. The references are 16-bit words each containing a sign bit and a 15-bit
integer. A negative reference is formed by calculating the two’s complement from the
corresponding positive reference.

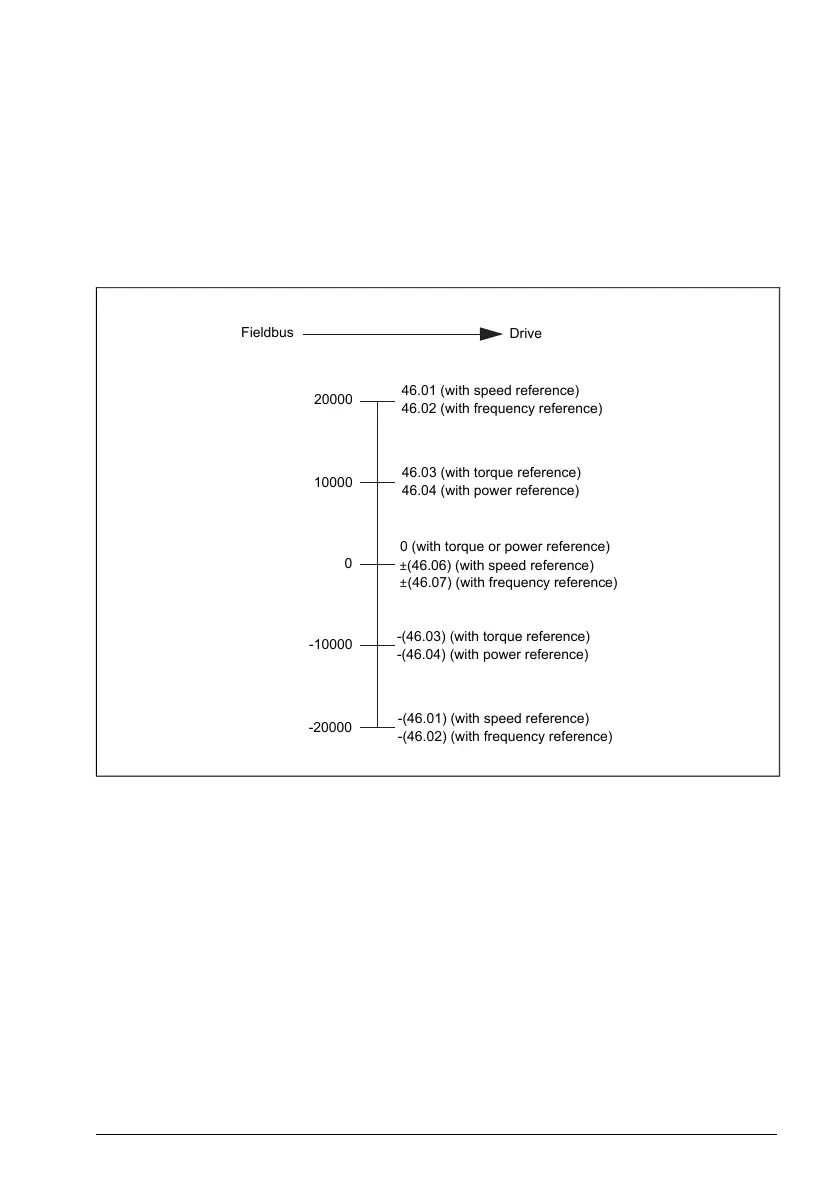

The references are scaled as defined by parameters 46.01...46.07; which scaling is in
use depends on the setting of 58.26 EFB ref1 type and 58.27 EFB ref2 type (page 436).
±
±
Fieldbus
Drive
20000
10000
0
-10000
-20000
46.01 (with speed reference)
46.02 (with frequency reference)
46.03 (with torque reference)
46.04 (with power reference)
0 (with torque or power reference)
(46.06) (with speed reference)
(46.07) (with frequency reference)
-(46.03) (with torque reference)
-(46.04) (with power reference)
-(46.01) (with speed reference)
-(46.02) (with frequency reference)
The scaled references are shown by parameters 3.9 EFB reference 1 and 3.10 EFB
reference 2.
