ABB CL Series User Manual

Wiring with the display system
154
1SVC 440 795 M1100
Memory requirement of the analog value comparator
The analog value comparator function block requires
68 bytes of memory plus 4 bytes per constant on the
function block inputs.

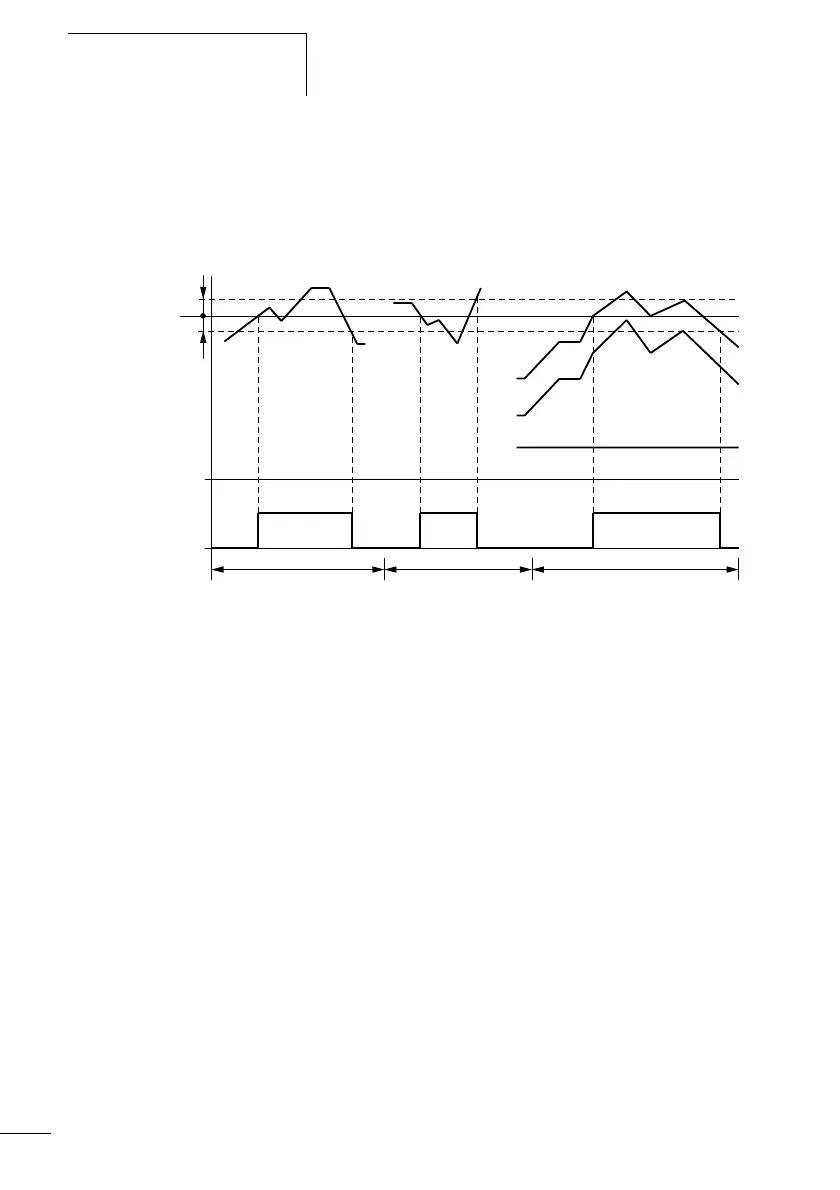

Figure: 96: Operational diagram analog value comparator
1: Actual value at
>I1
2: Setpoint value on >I2
3: Hysteresis on >HY
4: Switching contact (N/O contact)
5: Offset for value >I1
6: Actual value plus offset
1
3
2
4
AB C
3
1
6
1
5

ABB CL Series Specifications

General

Manufacturer	ABB
Rated Control Supply Voltage (Us)	24 V DC
Mounting	DIN Rail
Category	Relays
Contact Configuration	SPDT
Coil Voltage	24 V DC
Operating Temperature	-40°C to +70°C
Electrical Life	100 Thousand Cycles
Output	Relay
