ABB CL Series User Manual

Installation
78
1SVC 440 795 M1100
Remote expansion
Remote expansion units can be installed and run up to 30 m
away from the display base module.

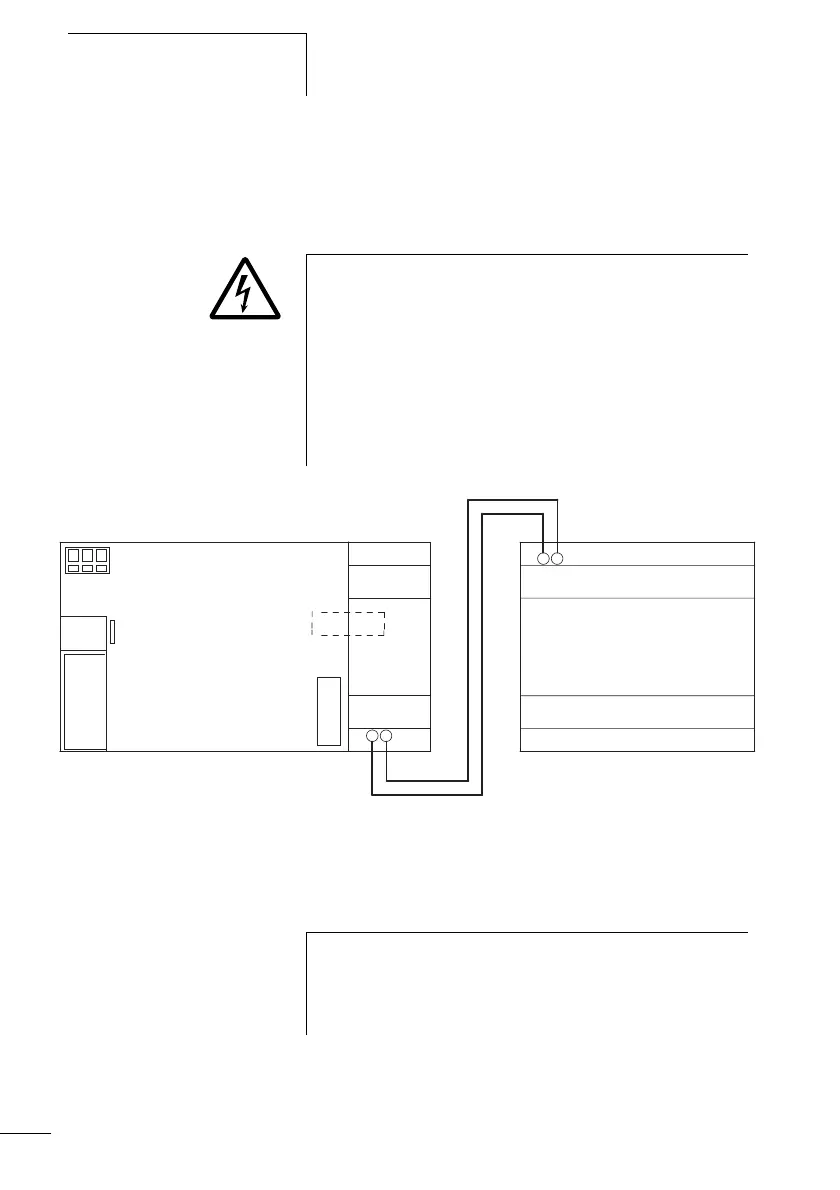

Figure: 62: Connecting remote expansion units to the display
base module
Warning!
The two-wire or multiple-wire cable between the devices
must comply with the insulation voltage requirement
which is stipulated for the installation environment.
Otherwise, a fault (ground fault, short-circuit) may lead to
the destruction of the units or injury to persons.
A cable such as NYM-0 with a rated operational voltage of
U
e
= 300/500 V AC is normally sufficient.
E+ E–
E+ E–
CL-LDC.L..
CL-LER.18AC2
CL-LER.18DC2
CL-LET.20DC2
U
e
= 300/500 V
CL-LER.18AC2
CL-LEC
h
The terminals E+ and E– of the CL-LEC.CI000 are
protected against short-circuits and polarity reversal.
Functionality is only ensured if E+ is connected with E+
and E– with E–.

ABB CL Series Specifications

General

Manufacturer	ABB
Rated Control Supply Voltage (Us)	24 V DC
Mounting	DIN Rail
Category	Relays
Contact Configuration	SPDT
Coil Voltage	24 V DC
Operating Temperature	-40°C to +70°C
Electrical Life	100 Thousand Cycles
Output	Relay
