ABB CL Series User Manual

Delay times for inputs and
outputs
375
1SVC 440 795 M1100
Delay times for the display system inputs
The delay time for DC signals is 20 ms.

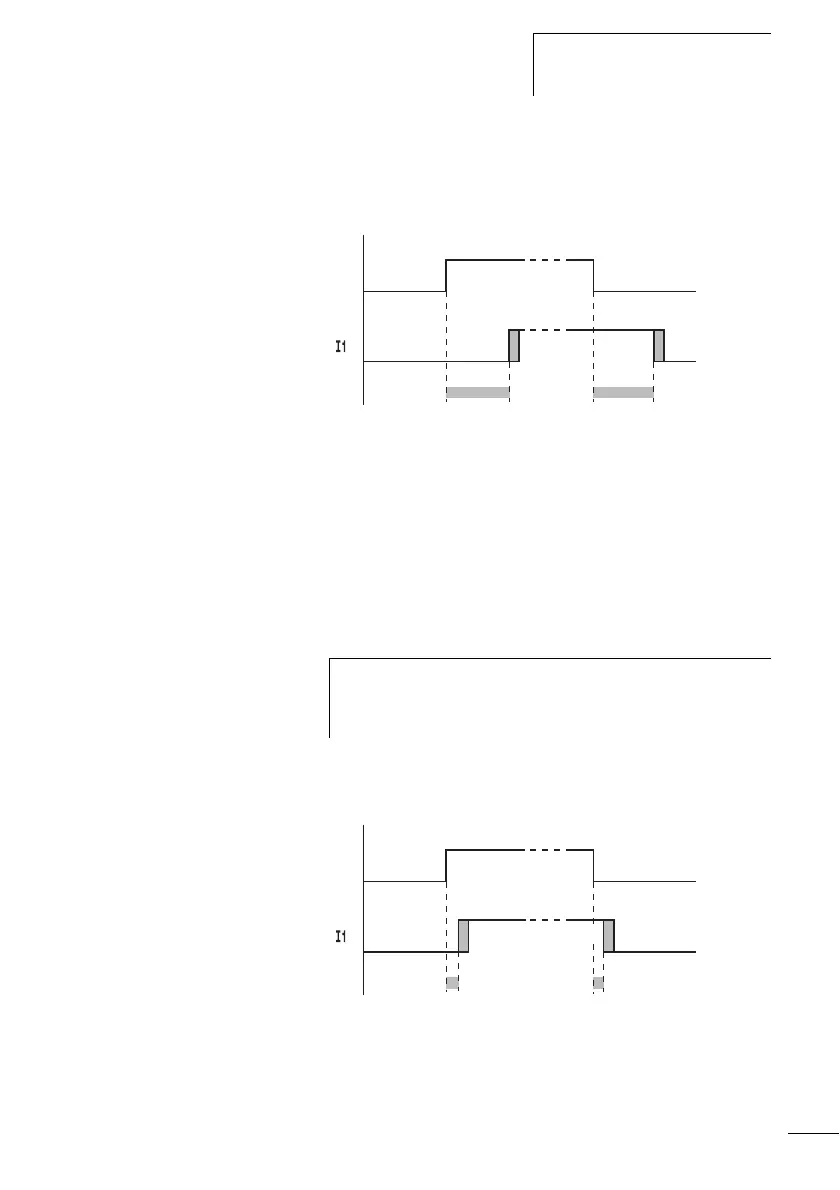

Figure: 188: Delay times for CL-DC2
An input signal S1 must therefore be 15 V, 8 V for at least
20 ms on the input terminal before the switch contact will
change from 0 to 1 (A). If applicable, this time must also
include the cycle time (B) since the display system does not
detect the signal until the start of a cycle.
The same debounce delay (C) applies when the signal drops
out from 1 to 0.
If the debounce is switched off, the display system responds
to an input signal after just 0.25 ms.
Figure: 189: Switching behaviour with input debounce disabled
1
0
1
0
S1
B
A
B
C
h
If you use high-speed counter function blocks, the
debounce delay time for the inputs is 0.025 ms.
Otherwise it is not possible to count high-speed signals.
1
0
1
0
S1
B
A
C
B
