Connecting the analog output
67
1SVC 440 795 M1100

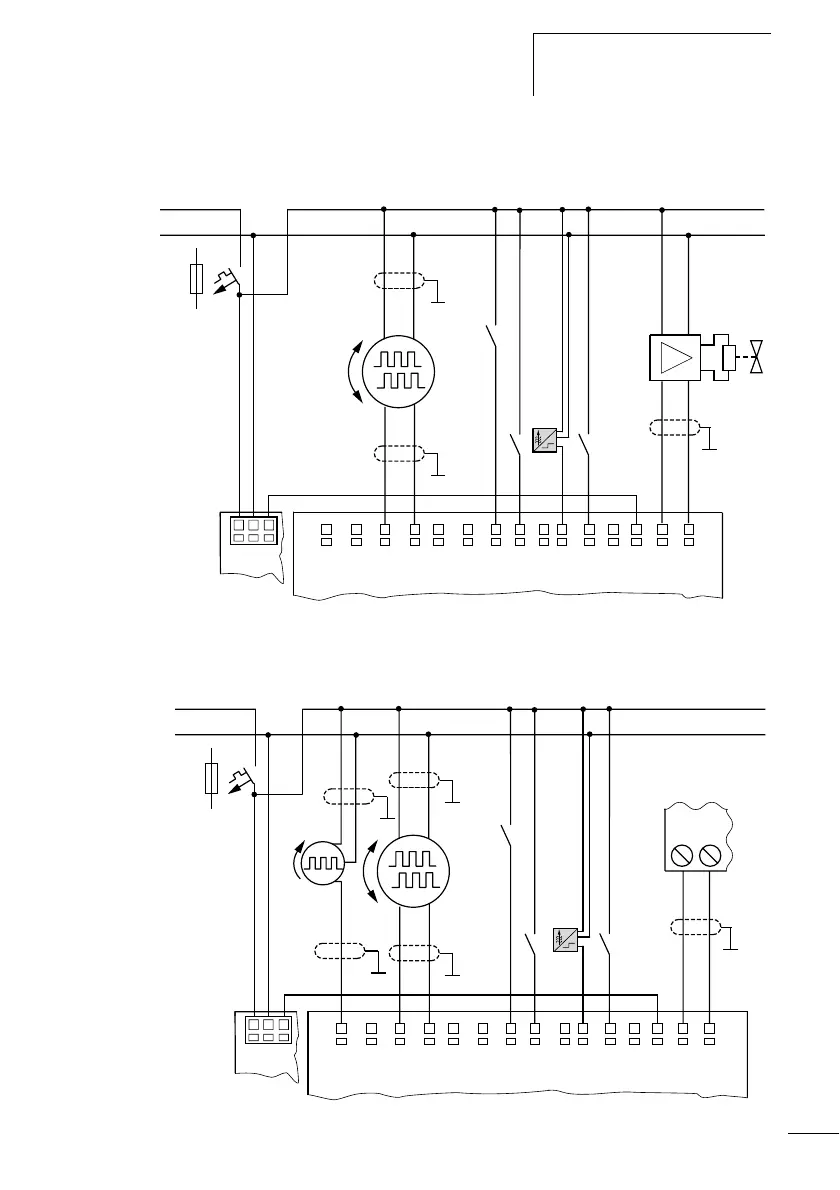

Connecting servo valves
Figure: 52: Connecting servo valves
Setpoint entry for a drive
Figure: 53: Setpoint entry for a drive
L01–
> 1 A
L01+
I1 I3 I4 I7 I8 I9 I10 0V QA 1
L02+
AB
I2 I5 I6 I11
I12
0V
+24V 0V 0V
L01–
> 1 A
L01+
I1 I3 I4 I7 I8 I9 I10 0V QA 1
0V IA
L02+
AB
I2 I5 I6 I11
I12
0V
+24V 0V 0V
