Installation
50
1SVC 440 795 M1100
CL-DC2 expansion devices CL-LER.18DC2,
CL-LET.20DC2

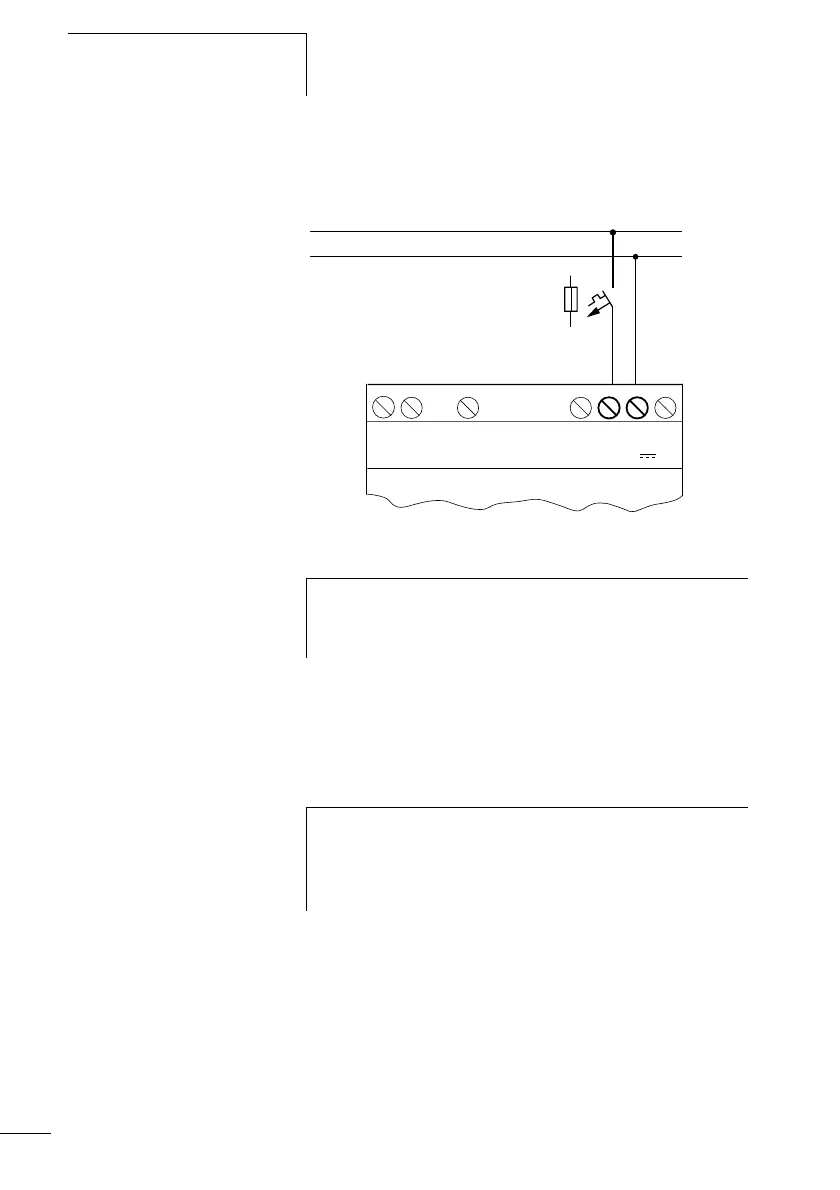

Figure: 32: Supply voltage to DC expansion devices
Cable protection
Connect a cable fuse protection (F1) of at least 1 A (slow) to
the CL-AC2 and CL-DC2 as well as to the display base module.
0V0V24V
L01-
F1
L01+
24 V
E+
E-
R1
...
R12
h
CL-DC2 is protected against polarity reversal. To ensure
that the logic relay works correctly, ensure that the
polarity of each terminal is correct.
h
On initial power up both the logic relay and the display
base module act as as a capacitor. Use a suitable device
for switching on the power supply and do not use any reed
relay contacts or proximity switches.
