ABB CL Series User Manual

Connecting the power supply
49
1SVC 440 795 M1100
CL-DC2 power supply

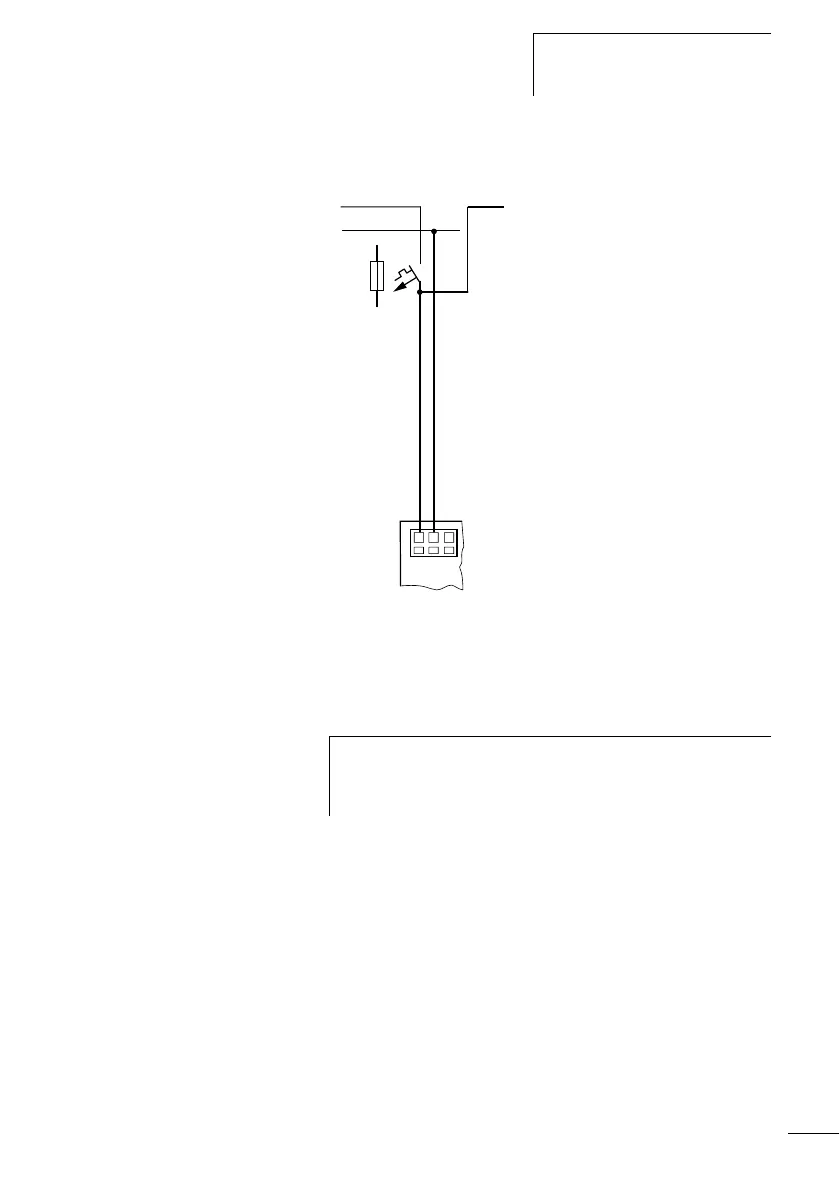

Figure: 31: Power supply on the display system
The display base module provides power for the display
module, display I/O module, the CL-LINK, optionally the
CL-NET and also for itself.
L01–
> 1 A
L01+
L02+
+24V 0V 0V
h
The display base module is protected against reverse
polarity. Ensure the correct polarity of the terminals to
ensure that the display system functions correctly.

ABB CL Series Specifications

General

Manufacturer	ABB
Rated Control Supply Voltage (Us)	24 V DC
Mounting	DIN Rail
Category	Relays
Contact Configuration	SPDT
Coil Voltage	24 V DC
Operating Temperature	-40°C to +70°C
Electrical Life	100 Thousand Cycles
Output	Relay
