ABB CL Series User Manual

Installation
48
1SVC 440 795 M1100
CL-AC2 expansion device CL-LER.18AC2

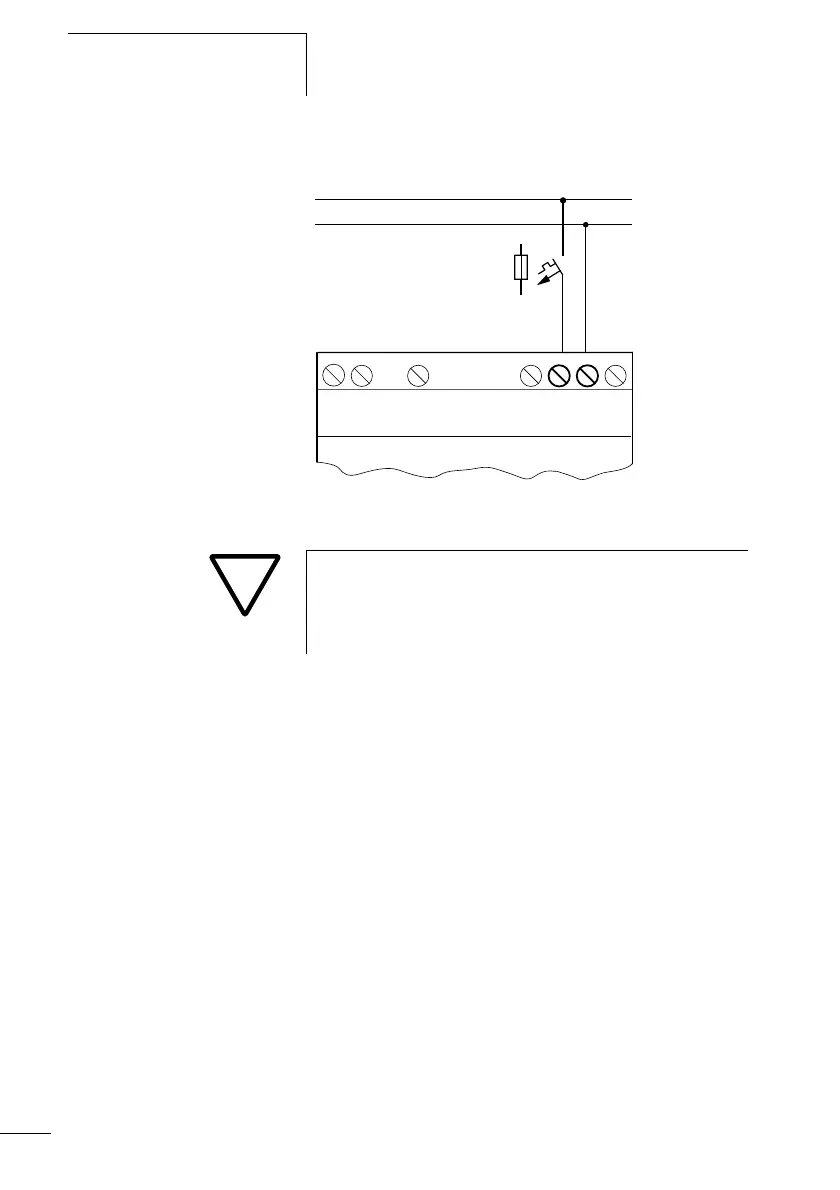

Figure: 30: Power supply on the AC expansion units
NNL
N
F1
L
115/230 V
~
E+
E-
R1
...
R12
Attention!
A short current surge will be produced when switching on
for the first time. Do not switch on the CL-AC2 by means
of reed contacts since these may burn or melt.

ABB CL Series Specifications

General

Manufacturer	ABB
Rated Control Supply Voltage (Us)	24 V DC
Mounting	DIN Rail
Category	Relays
Contact Configuration	SPDT
Coil Voltage	24 V DC
Operating Temperature	-40°C to +70°C
Electrical Life	100 Thousand Cycles
Output	Relay
