ABB CL Series User Manual

Connecting the serial interface
73
1SVC 440 795 M1100

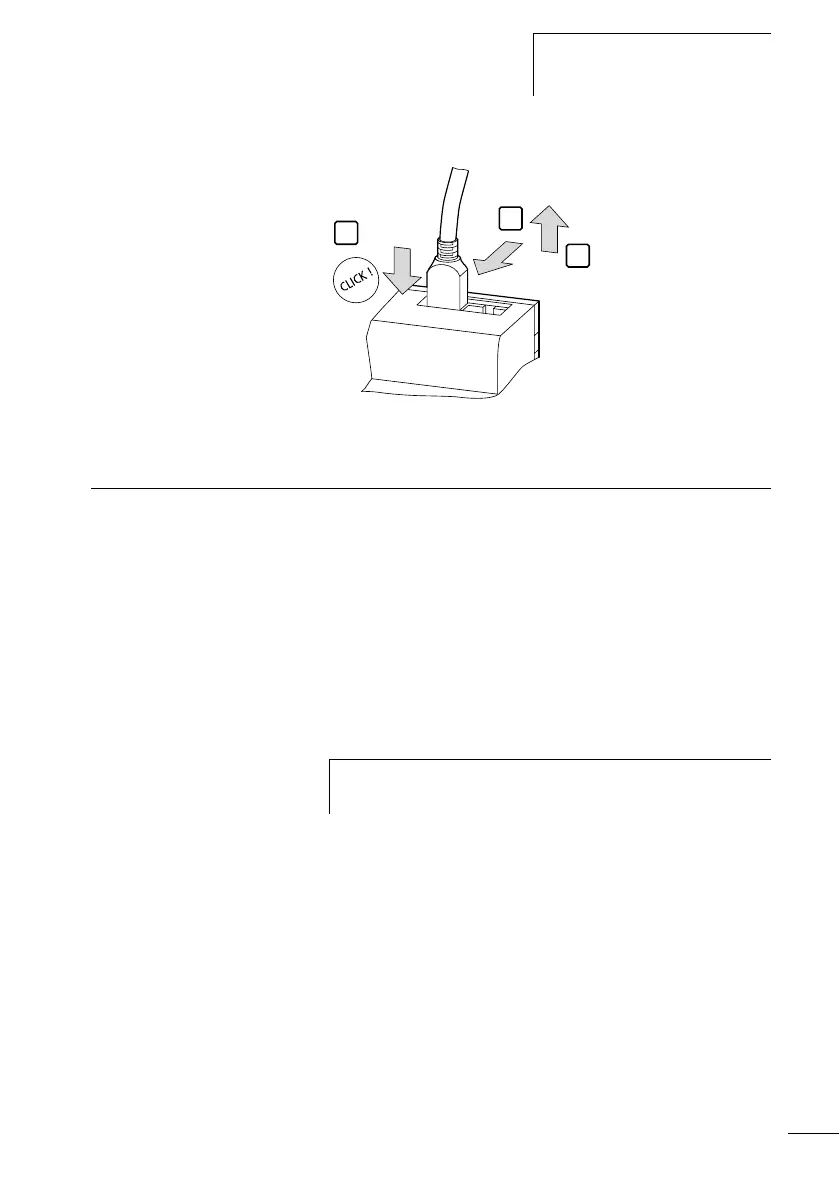

Figure: 57: Plugging and unplugging cables
Connecting the serial
interface
The display base module is provided with a multi-function
interface. This can be used to set up point-to-point
communication between different devices. The interface is
also used for connecting the CL-LAD.TK001 connecting cable.
This enables a display system to be connected with another
one.
The serial interface must be implemented using special
cables.
The standard CL-LAD.TK006 cable is 5 m in length.
1
2
3
h
The CL-LAD.TK006 cable must not be lengthened in order
ensure compliance with EMC regulations.

ABB CL Series Specifications

General

Manufacturer	ABB
Rated Control Supply Voltage (Us)	24 V DC
Mounting	DIN Rail
Category	Relays
Contact Configuration	SPDT
Coil Voltage	24 V DC
Operating Temperature	-40°C to +70°C
Electrical Life	100 Thousand Cycles
Output	Relay
