ABB CL Series User Manual

Installation
46
1SVC 440 795 M1100
Connecting the expansion
device

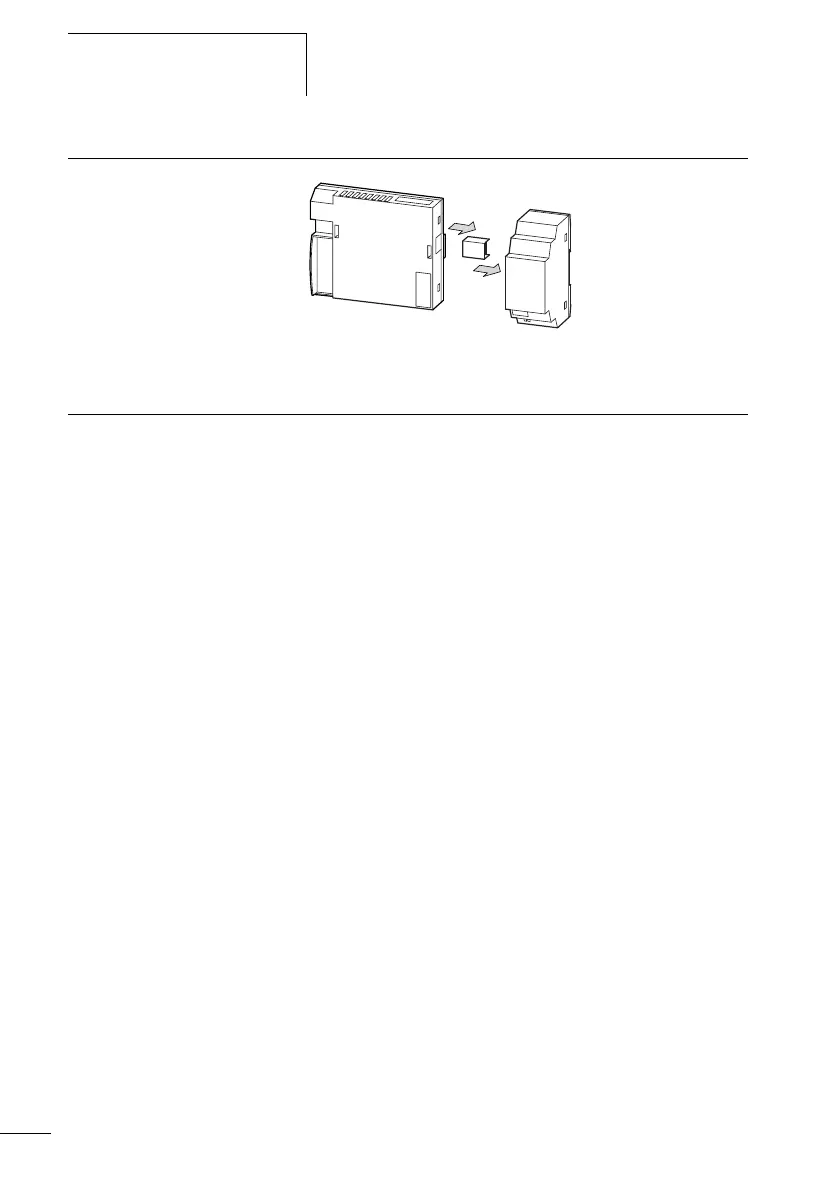

Figure: 28: Connecting expansion units
Terminals Tool for cage clamp terminals
Slot-head screwdriver, width 3.5 mm × 0.6 mm.
Connection cross-sections of the cage clamp terminal
cables for the display system
• Solid: 0.2 to 4 mm
2
(AWG 24-12)
• Flexible with ferrule: 0.2 to 2.5 mm
2
(AWG 24-12)
Tool for the screw terminals of the CL expansion
Slot-head screwdriver, width 3.5 × 0.6 mm, tightening
torque 0.6 Nm.
Connection cross-sections of screw terminal cables of
the CL expansions
• Solid: 0.2 to 4 mm
2
(AWG 22-12)
• Flexible with ferrule: 0.2 to 2.5 mm
2
(AWG 22…12)

ABB CL Series Specifications

General

Manufacturer	ABB
Rated Control Supply Voltage (Us)	24 V DC
Mounting	DIN Rail
Category	Relays
Contact Configuration	SPDT
Coil Voltage	24 V DC
Operating Temperature	-40°C to +70°C
Electrical Life	100 Thousand Cycles
Output	Relay
