ABB CL Series User Manual

Appendix
398
1SVC 440 795 M1100
Display base module, real-time clock/timing relay/
memory

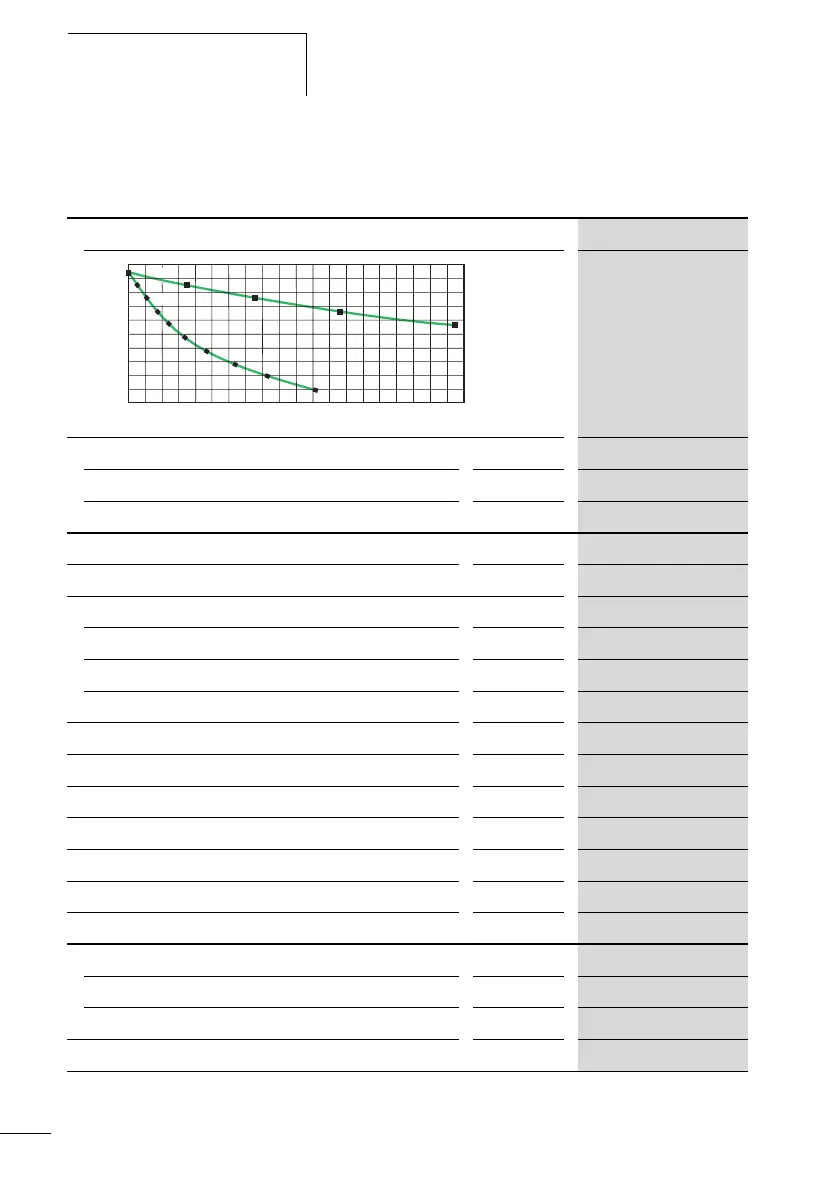

Backup/accuracy of real-time clock (see graph)
Accuracy of the real-time clock
Per day s/day g 5
Per year h/year g 0.5
Repetition accuracy of timing relays
Accuracy of timing relays (of values) % g 0.02
Resolution
Range “s” ms 5
Range “M:S” s 1
Range “H:M” min 1
Rungs/current paths
256
Contacts in series 4
Coil per circuit connection 1
Program memory for program/circuit diagram KByte 8
Program memory for display objects (visualization) KByte 24
RAM working memory KByte 8
Storage of programs (retentive) FRAM
Retentive memory (retentive data, retentive) FRAM
Size Byte 200
Operating hours counter Byte 16
Write-read cycles FRAM (minimum) 10
10
a
b
180
200
160
140
120
100
80
60
40
20
0
0246 810 2012 1413 5 7 9 1113
55˚C
25˚C
15 17 1916 18

ABB CL Series Specifications

General

Manufacturer	ABB
Rated Control Supply Voltage (Us)	24 V DC
Mounting	DIN Rail
Category	Relays
Contact Configuration	SPDT
Coil Voltage	24 V DC
Operating Temperature	-40°C to +70°C
Electrical Life	100 Thousand Cycles
Output	Relay
