ABB CL Series User Manual

Connecting relay outputs
63
1SVC 440 795 M1100
CL-LER.18AC2, CL-LER.20DC2

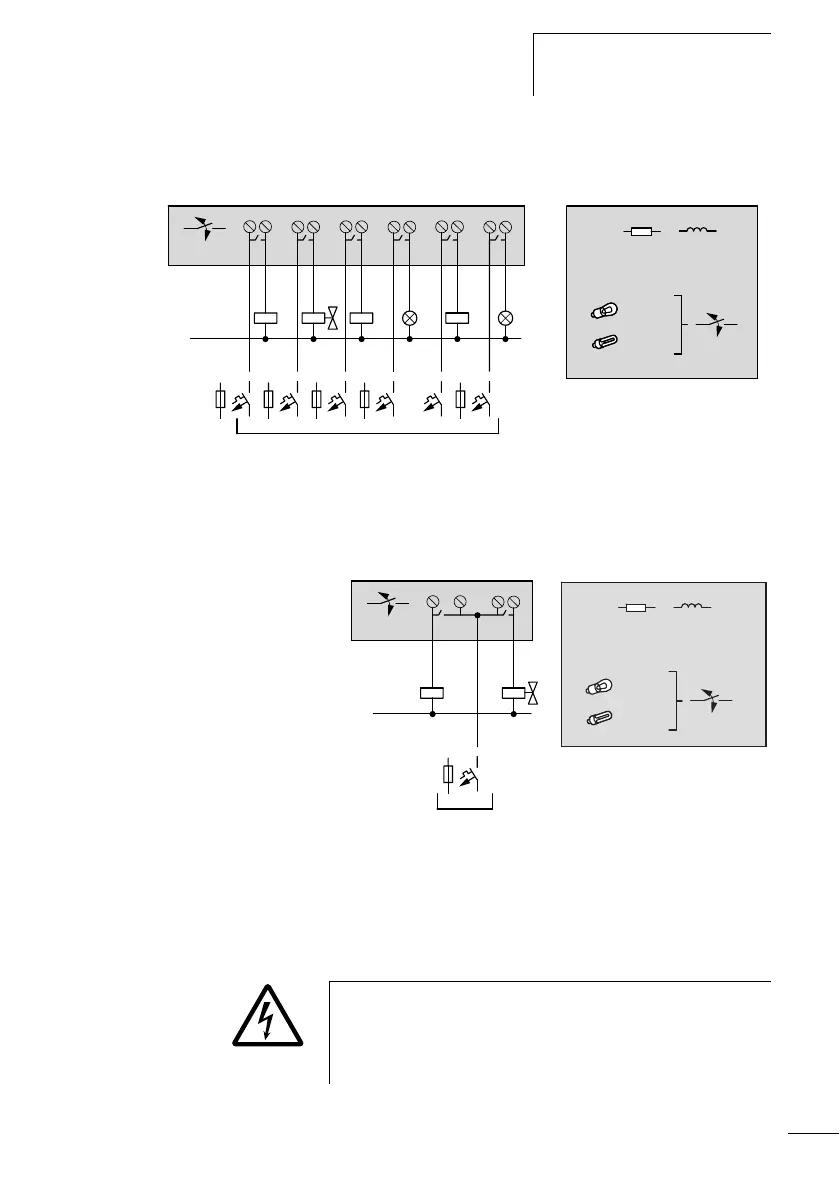

Figure: 47: Relay outputs CL-LER.18AC2, CL-LER.20DC2
CL-LER.2O
Figure: 48: Relay outputs CL-LER.2O
Unlike the inputs, the CL-LDR.., CL-LER.18AC2,
CL-LER.18DC2 relay outputs can be connected to different
phase conductors.
0 V H, N
F
8 A/B 16
L1, L2, L3 (115/230 V h)
+ 24 V H
25 000
R
24 V H
8A
115 V h 8A
230 V h 8 A
2A
2A
2A
1000 W
10 x 58 W
12 2 2 2 2 2
1
1
1
1
1
10 000 000
S6S5S4S3
S2
S1
+ 24 V HV
0 V H, N
F
8 A/B 16
L1, L2, L3 (115/230 Vh)
12 2
1
10 000 000
S2
S1
25 000
RL
24 V H
8A
115 V h 8A
230 V h 8 A
3A
3A
3A
1000 W
10 x 58 W
Do not exceed the maximum voltage of 250 V AC on a
relay contact. If the voltage exceeds this threshold,
flashover may occur at the contact, resulting in damage to
the device or a connected load.
