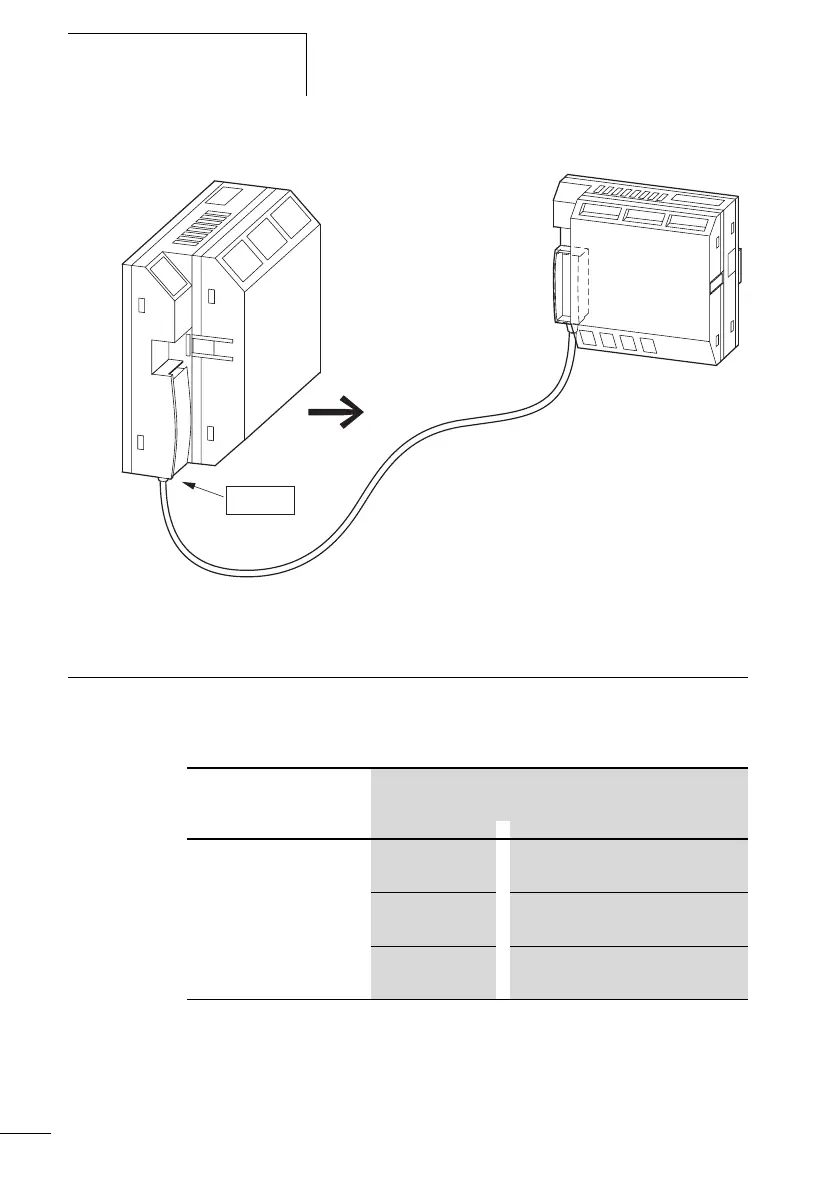

Figure: 60: Serial interface point-to-point connection
Expanding inputs/outputs In order to increase the number of inputs/outputs, you can
connect expansion devices to all display base module types
with a CL-LINK terminal:
1) Common supply for multiple outputs
POW-Side
Expandable CL basic
units
Expansion units
CL-LDC.L.. CL-LER.18AC2
Cl-LER.18DC2
• 12 AC inputs,
• 6 relay outputs
CL-LET.20DC2 • 12 DC inputs,
• 8 transistor outputs
CL-LER.2O 2 relay outputs, common
potential
1)

ABB CL Series Specifications

General

Manufacturer	ABB
Rated Control Supply Voltage (Us)	24 V DC
Mounting	DIN Rail
Category	Relays
Contact Configuration	SPDT
Coil Voltage	24 V DC
Operating Temperature	-40°C to +70°C
Electrical Life	100 Thousand Cycles
Output	Relay
