ABB CL Series User Manual

Display system
16
1SVC 440 795 M1100

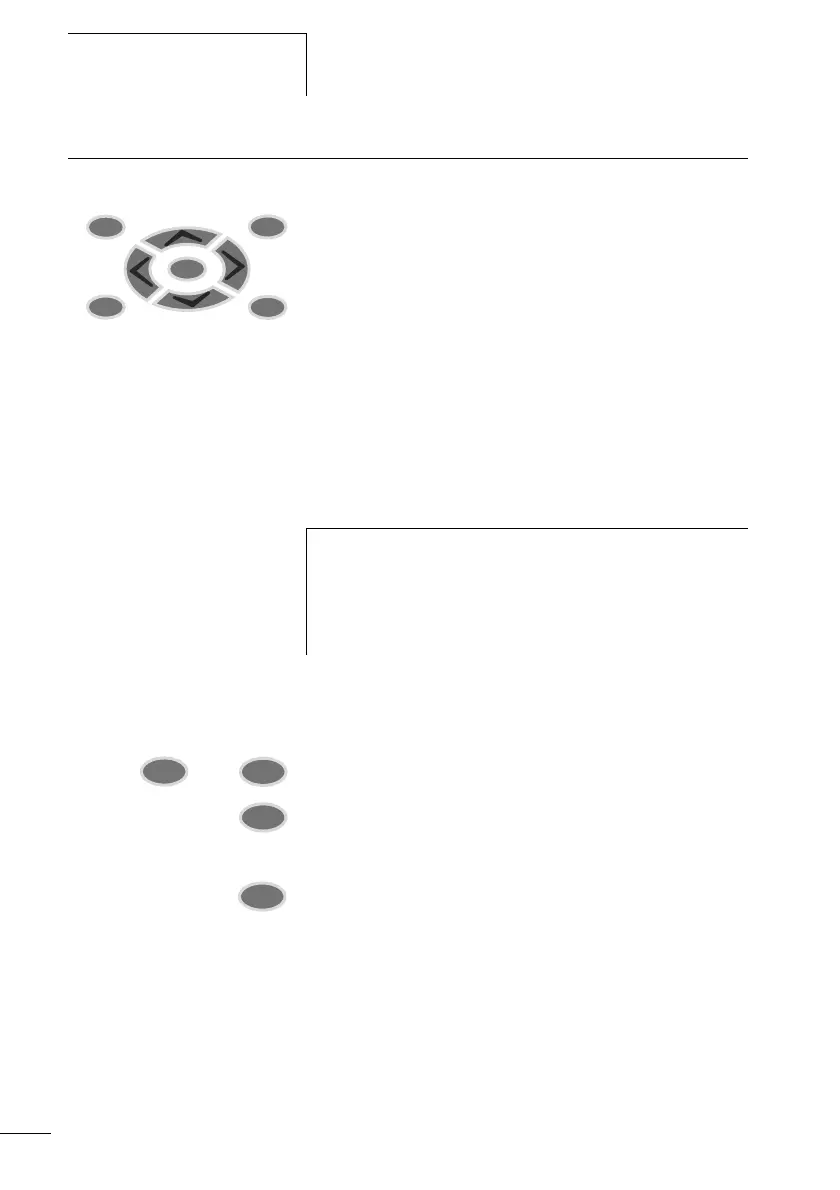

Operating the display
system
Keypad
Selecting menus and entering values
DEL: Delete object in circuit diagram
ALT: Special functions in circuit diagram, status display
Cursor buttons
úíÍ Ú:
Move cursor
Select menu items
Set numbers and values
OK: Next menu level, Save your entry
ESC: Previous menu level, Cancel
*:
Toggle between visualization display and status display
Close Terminal mode
h
In visualization applications, the keypad of the operating
unit can be used for other functions than the ones stated
above. In this case the buttons are assigned the function
selected in the application. The standard button functions
are only restored when you leave the application.
*
DEL
ALT
ESC
OK
and Show system menu
Move to next menu level
Call menu item
Activate, change, store entries
Move to previous menu level
Cancel entries since last OK
DEL
ALT
OK
ESC
