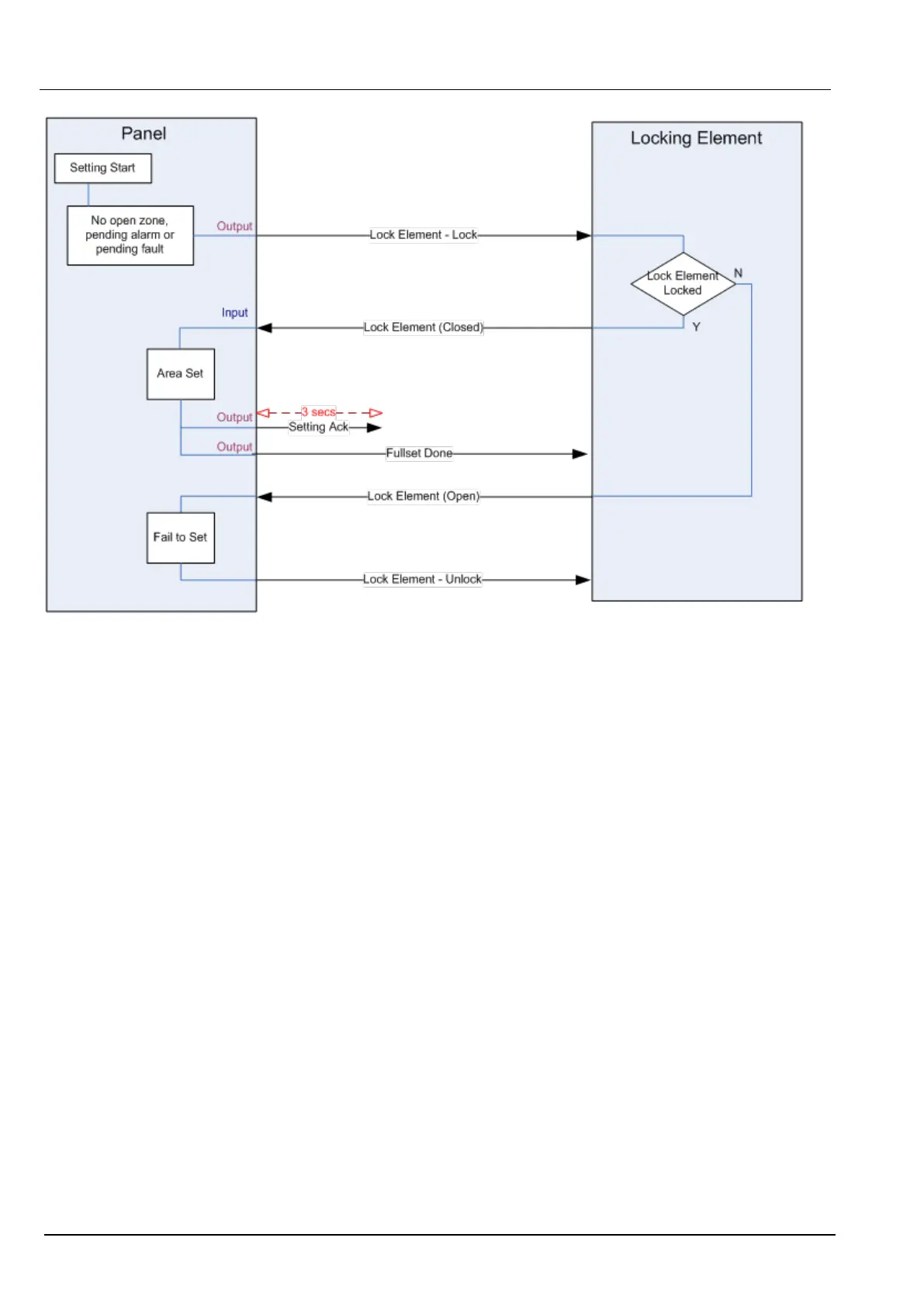

The configuration requirements for the lock element are as follows:

Outputs:

– Lock Element – Lock

– Lock Element – Unlock

Inputs

– Lock Element

SPC42/52/53/63 – Installation & Configuration Manual Blocking Lock Operation

08.12.2023
