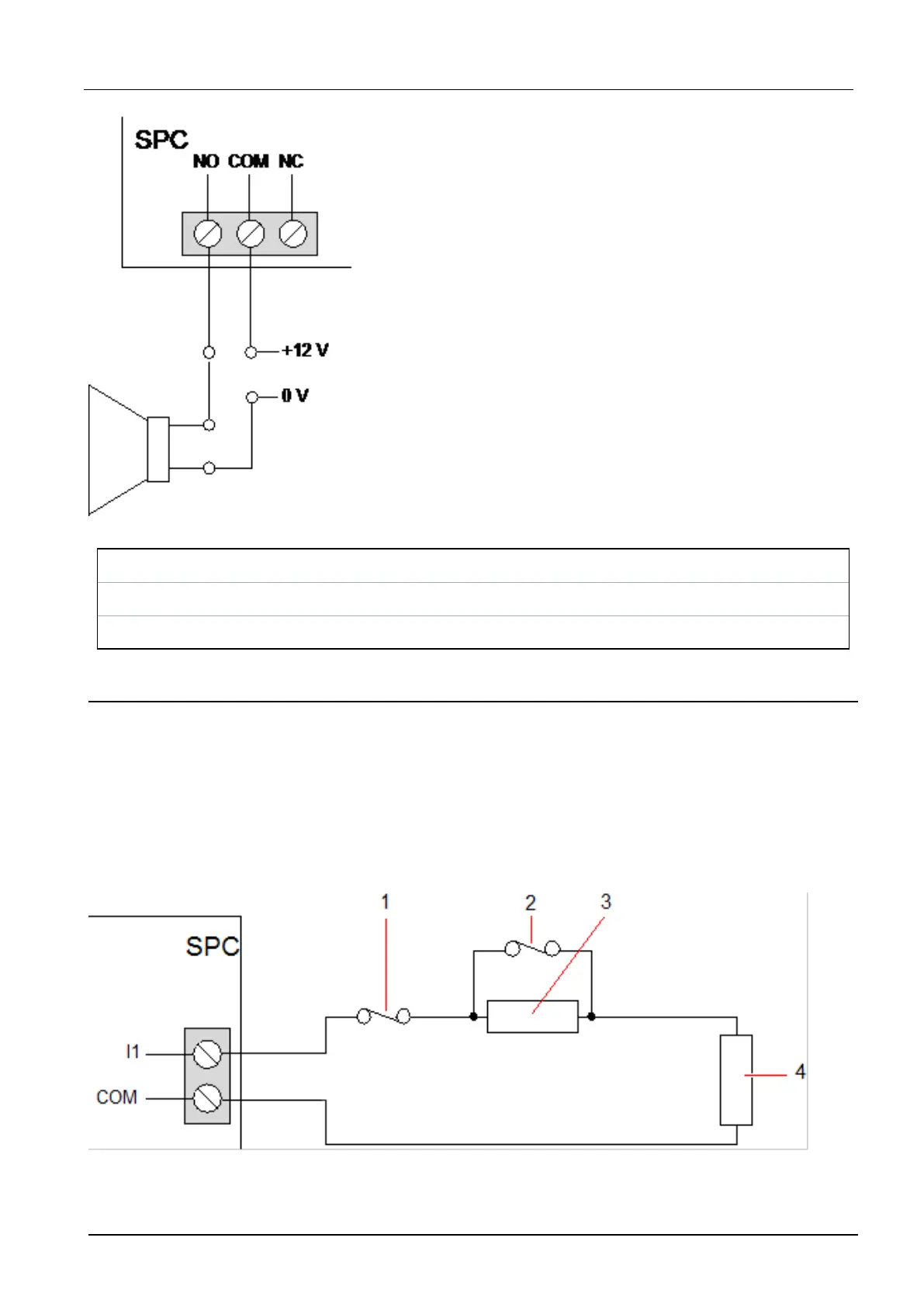

Standard wiring
NO Normally open terminal
COM Common terminal connection
NC Normally closed terminal
9.5 Wiring the zone inputs
The SPC controller has 8 on-board zone inputs. By default these inputs are monitored using end of
line supervision. The installer can choose from any of the following configurations when wiring the
inputs:
l
No End of Line (NEOL)
l
Single End of Line (SEOL)
l
Dual End of Line (DEOL)
l
Anti-masking PIR
Default configuration (DEOL 4k7)
SPC42/52/53/63 – Installation & Configuration Manual Wiring the system
