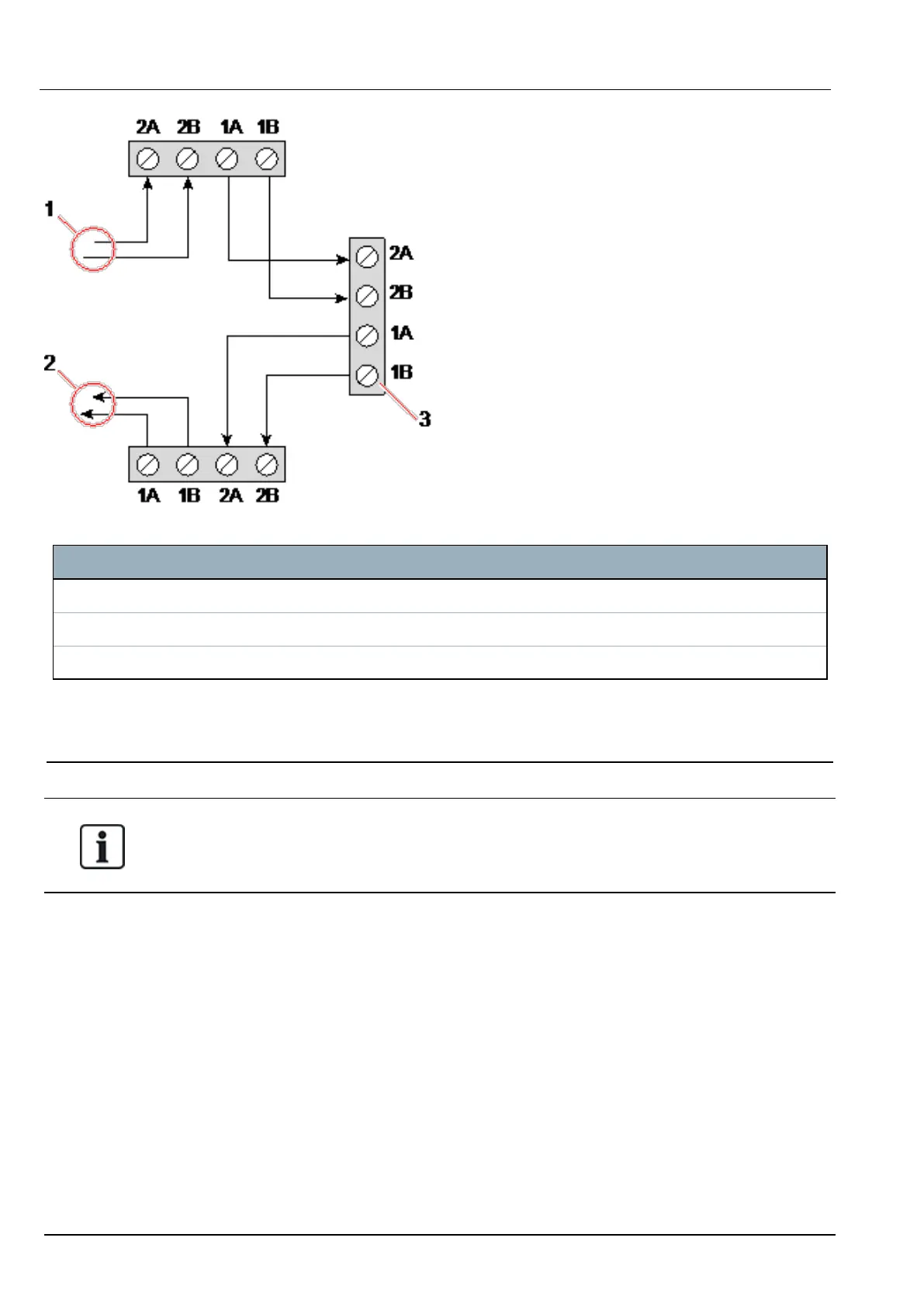

Wiring expander
Number Description
1 Previous expander
2 Next expander
3 SPC controller
Most expanders are equipped with additional terminals 3A/3B and 4A/4B for branch expander wiring.
See Wiring of branch expander on page43 for instructions on branch expander wiring.
9.1.1 Loop configuration
NOTICE: All expanders/keypads are fitted with a termination jumper by default. In loop
configuration it’s imperative to have these jumpers fitted.
SPC42/52/53/63 – Installation & Configuration Manual Wiring the system
© Vanderbilt 2023 36 I-200572
08.12.2023
