Acre SPC42 - Wiring the Inputs

Number Description
1 SPCP355.300 Smart PSU outputs
2 SPC Controller
3 SPCP355.300 Input/Output expander
4 Next expander
5 Next expander
6.5.1 Wiring the Inputs
The expander has 8 on-board zone inputs which can be configured as one of the following:
l
No End of Line
l
Single End of Line
l
Dual End of Line
l
Anti-Masking PIR
Default Configuration

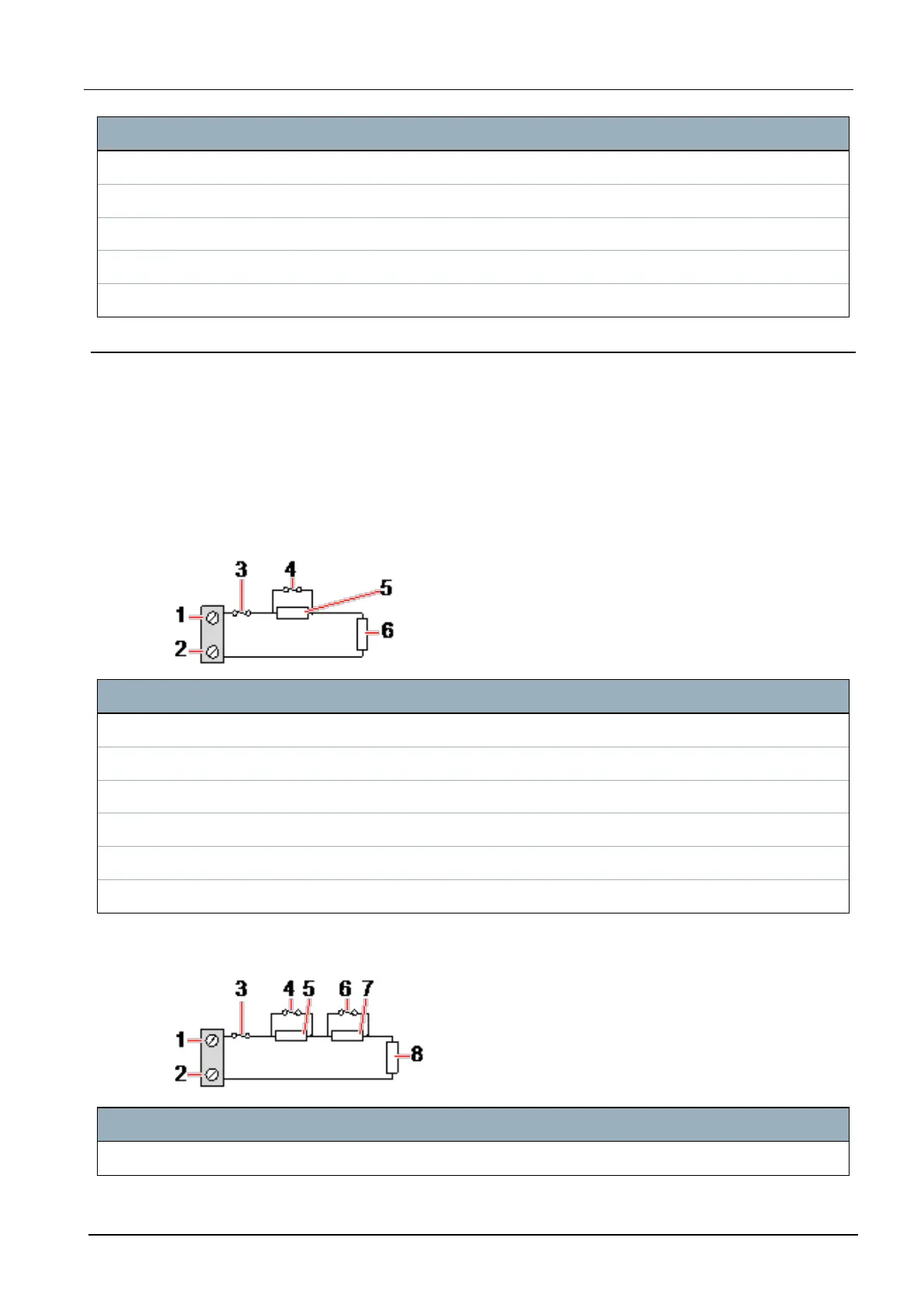

The following diagram shows the default configuration, Double EOL 4k7:
Number Description
1 Input 1
2 COM
3 Tamper
4 Alarm
5 4k7
6 EOL 4k7
Anti-Masking PIR
The following diagram shows the Anti-Masking PIR configuration:
Number Description
1 Input 2
SPC42/52/53/63 – Installation & Configuration Manual Mounting system equipment
© Vanderbilt 2023 29 I-200572
08.12.2023
