Acre SPC42 - Mounting a Keypad; Mounting an Expander; Wiring the X-BUS Interface

The battery flaps should be bent carefully as not to damage the battery. If any signs of a damaged
battery exist or any leakage of the electrolyte then the battery should be discarded as per the
current regulations and a new battery fitted.
6.3 Mounting a keypad
See the corresponding installation instruction.
Installation guides are available at https://vanderbiltindustries.com/download-center.
6.4 Mounting an expander
See the corresponding installation instruction.
Installation guides are available at https://vanderbiltindustries.com/download-center.
6.5 Wiring the X-BUS Interface
The X-BUS interface connects expanders and keypads to the SPC controller. The X-BUS can be wired
in a number of different configurations, depending on the installation requirements.
The following table lists the cable types and distances recommended:
Maximum cable length=(numberof expanders and keypads in the system) x (maximum cable
distance for each cable type)
Cable Type Distance
CQR Standard Alarm Cable 200m
UTP Cat-5 Solid core 400m
Belden 9829 400m
IYSTY 2x2x0.6(min) 400m

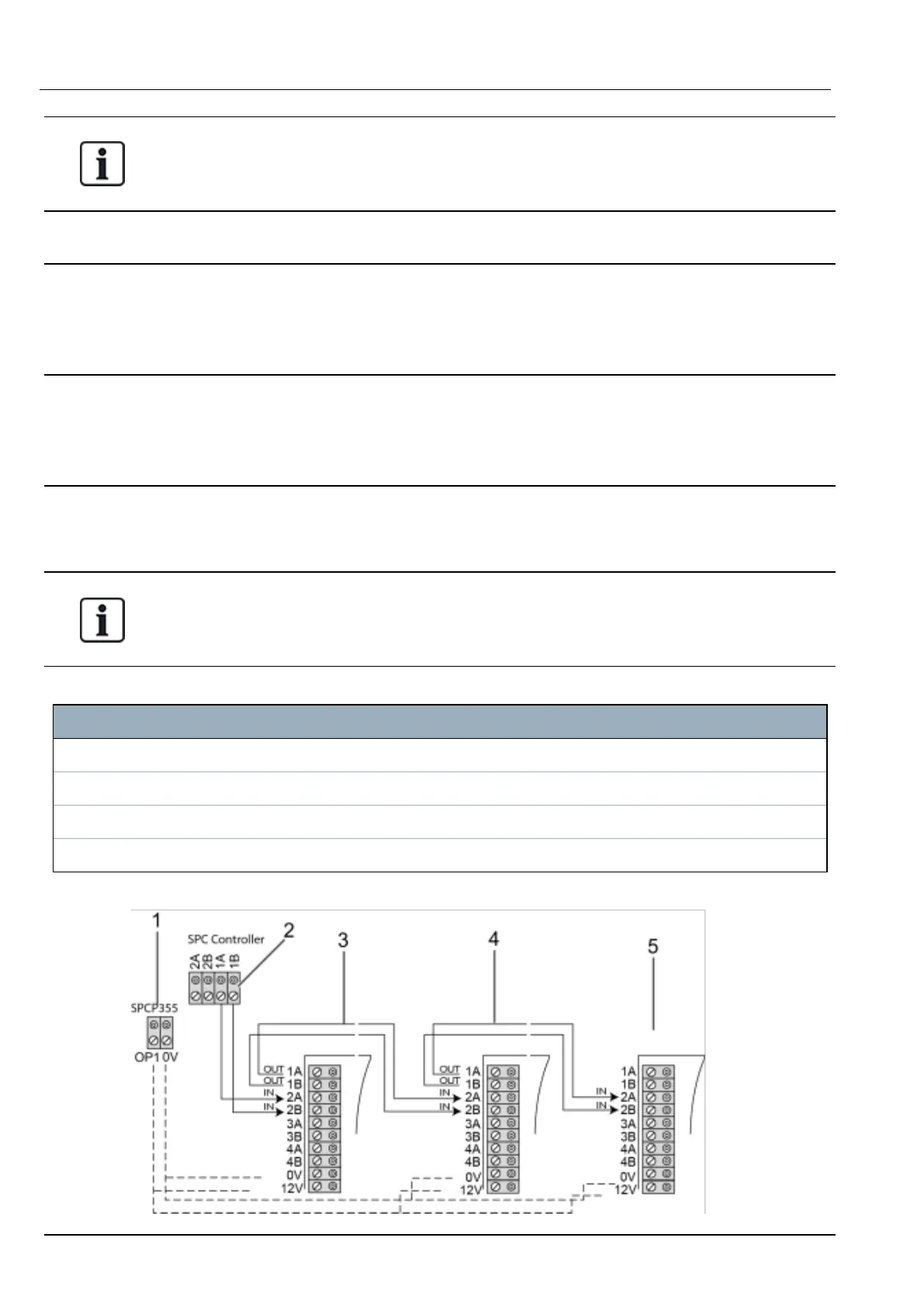

The following diagram shows an example of wiring the X-BUS:
