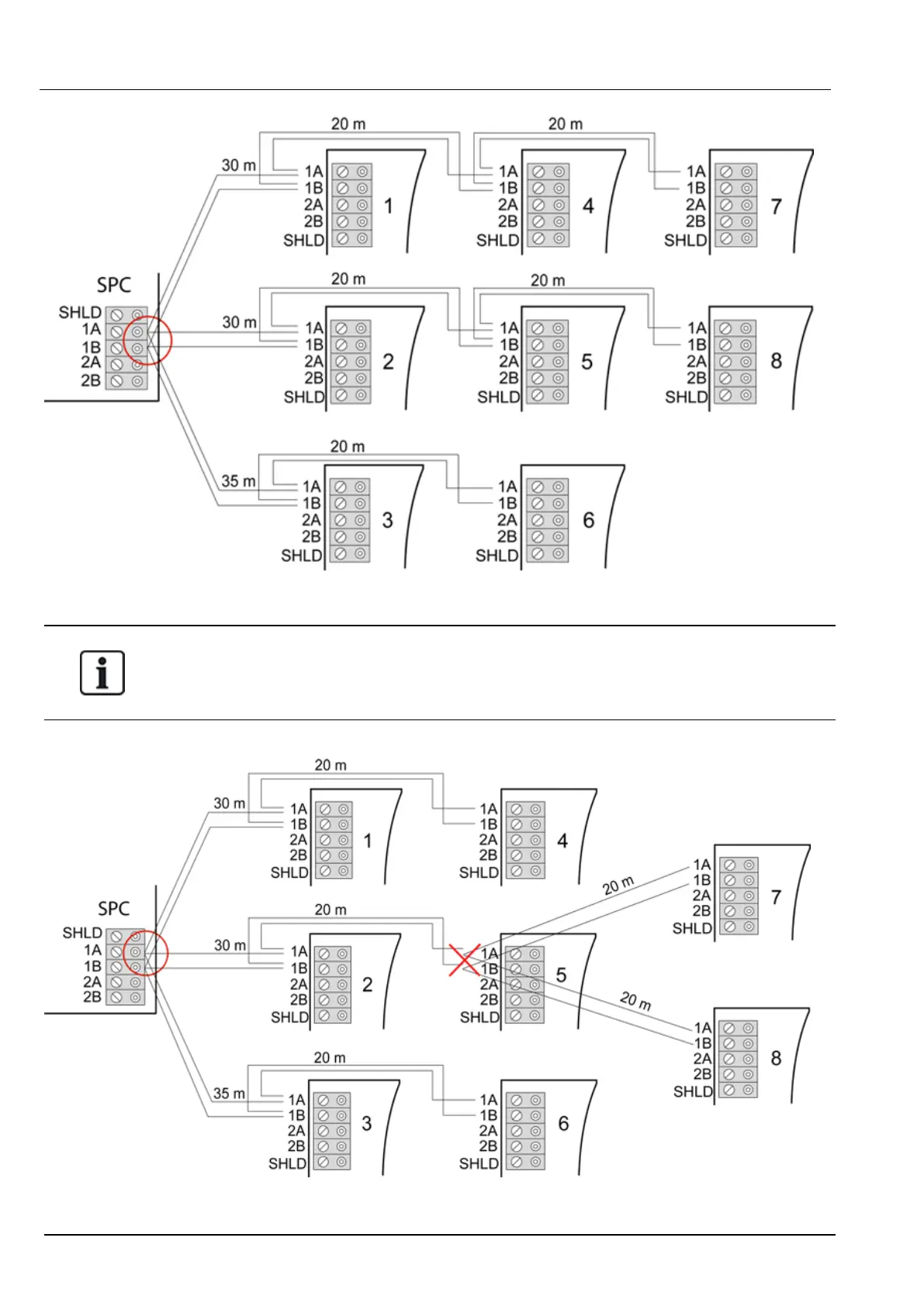

Mixed wiring
9.1.3.2 Examples of incorrect wiring
NOTICE:A mix of star and multi-drop configuration is only allowed if the star point is at the controller
X-BUS port. In this case, all expanders/keypads must be wired in multi-drop configuration without
any other star points in the wiring.
Not allowed wiring with a second star point
