6253 DC Voltage Current Source/Monitor Operation Manual
2.3 Soft Keys
2-9
• RETURN Returning to the top
4. Limit Setting the limit values (The cursor moves to HL.)
• HL High limit value
• LL Low limit value
• LMT In Limit setting: Balance or INDIV
• When LMT In is set to Balance, setting HL will set LL to the same value of
the reverse polarity.
• INDIV: HL and LL can be set individually.
• RETURN Returning to the top

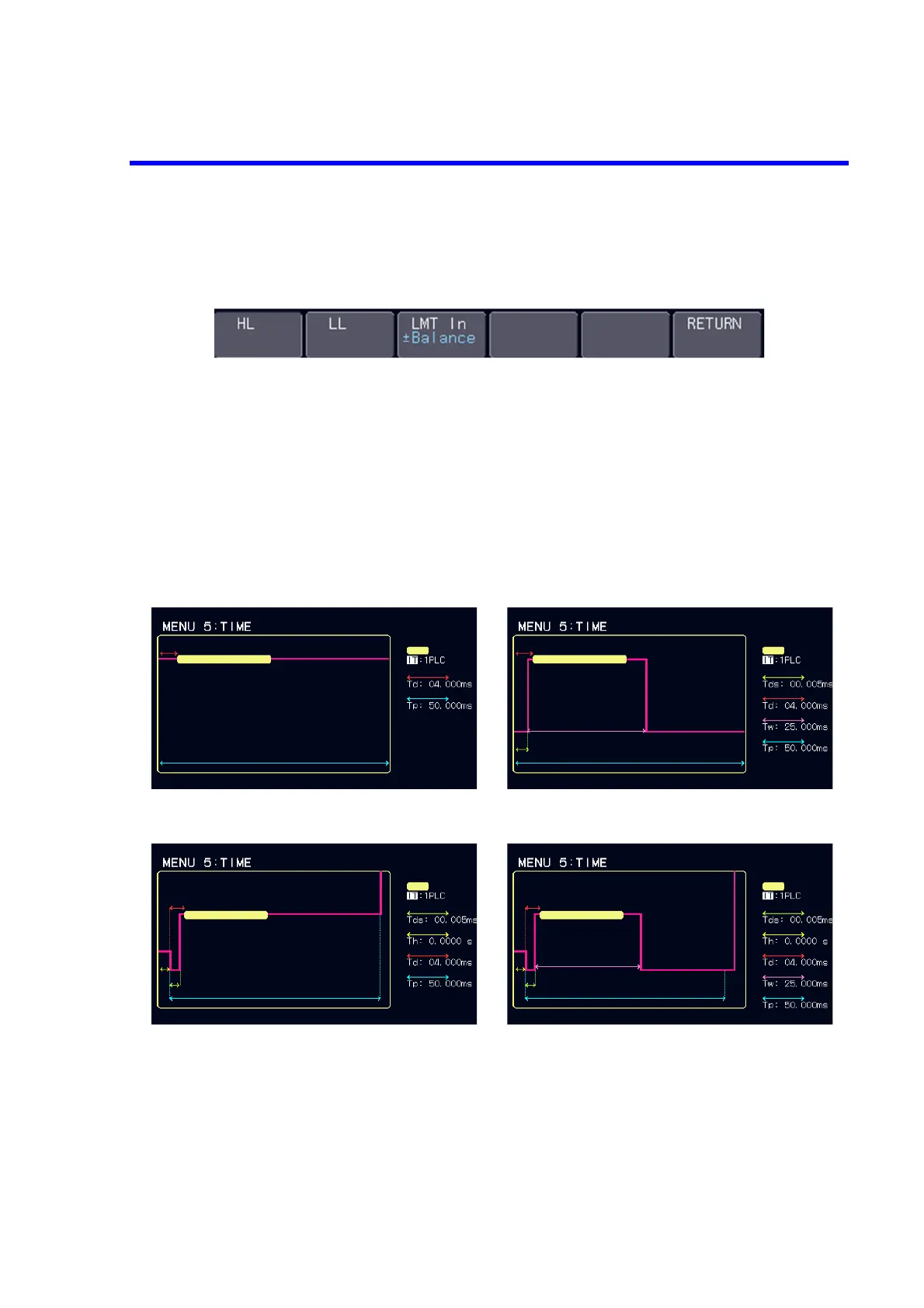

5. Time Displaying the time setting screen (The displayed waveforms are not actual ones, but
are rough indication for time setting.)
The setting parameters vary according to the source mode.
The parameters such as IT and Tp on the level of the time setting screen can be set.
The parameter details and how to operate the Input/Run level are described in Section 2.6.1, “MENU
Operation.”
DC source Pulse source
Pulse sweep sourceDC sweep source
To Next Page
