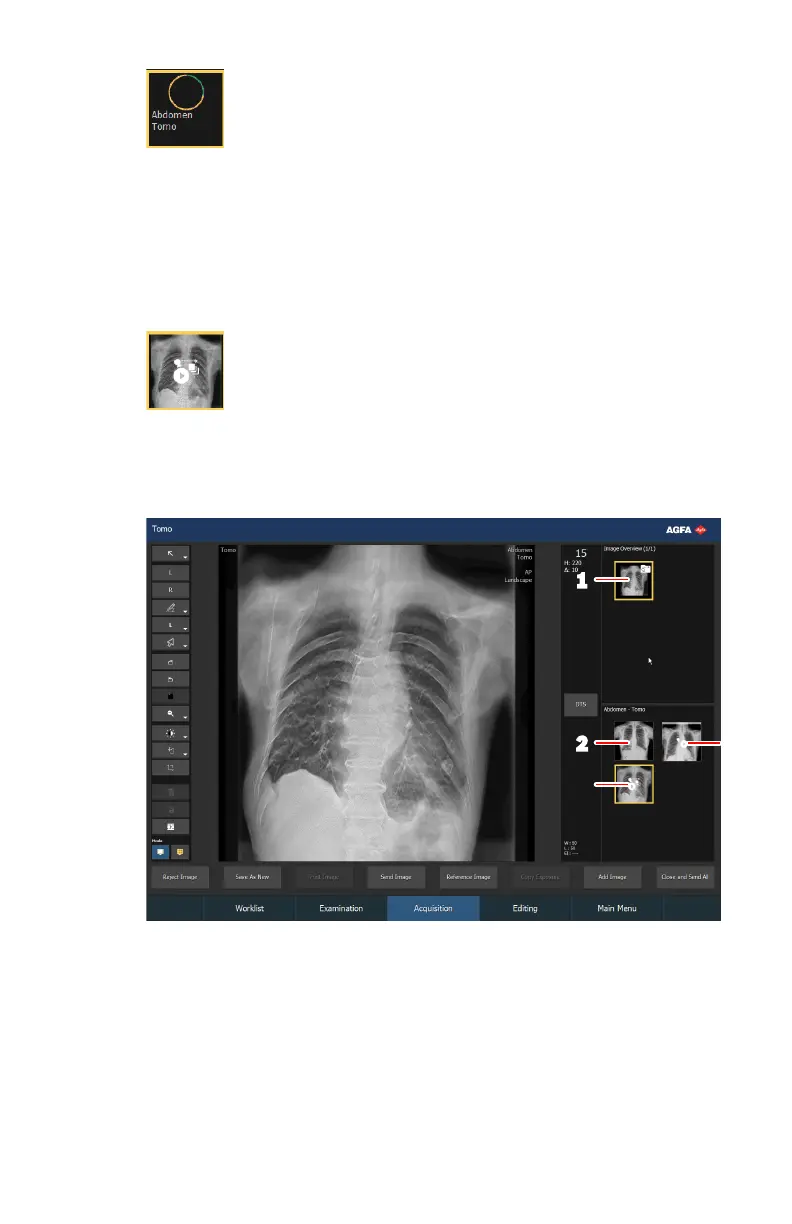

Figure 47: Progress indicator for the image processing to create the
reconstruction sequence
The reconstruction sequence is displayed as a reconstruction sequence
thumbnail in the lower half of the Image Overview pane.
The middle slice of the sequence is visible in the thumbnail. An acquisition
sequence thumbnail is indicated with a white Play icon in the center.
Figure 48: Thumbnail of the reconstruction sequence
After the reconstruction sequence becomes available, the Acquisition
window looks as follows:
1.
Digital tomosynthesis group thumbnail
2.
Image thumbnail (if a reference image is acquired)
3.
Acquisition sequence
4.
Reconstruction sequence
Figure 49: Result of the exposure
After making the digital tomosynthesis exposure, no more static images or
digital tomosynthesis sequences can be added to the digital tomosynthesis
group.
108
| DR 600 | Basic Workflow
3261K EN 20210708 0808
