AGFA DR 600 - Device Status Frame

Device Status Frame
1
2
4 5 6 8
3 7

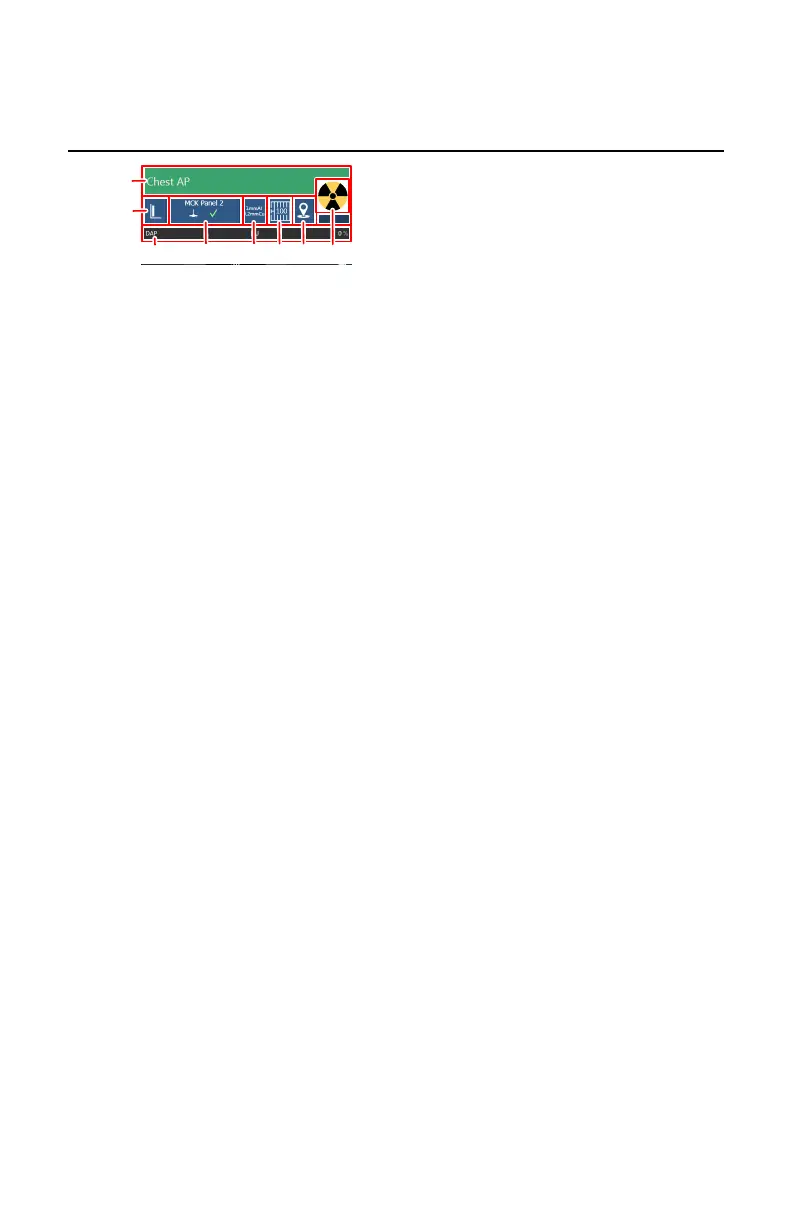

Figure 60: X-ray modality status frame
1. Ready for exposure status
The status bar displays the exam type.
2. Modality position
3. DAP value
Heat units
4. DR detector switch
5. Filter status
6. Grid status
7. Automatic positioning status
8. Radiation status
Power status
Topics:
• Ready For Exposure Status
• Modality Position
• DR Detector Switch
• Filter Status
• Grid Status
• Radiation status
• Unknown status
