Actual and target position parameters
The target position parameters correspond to the selected automatic position.

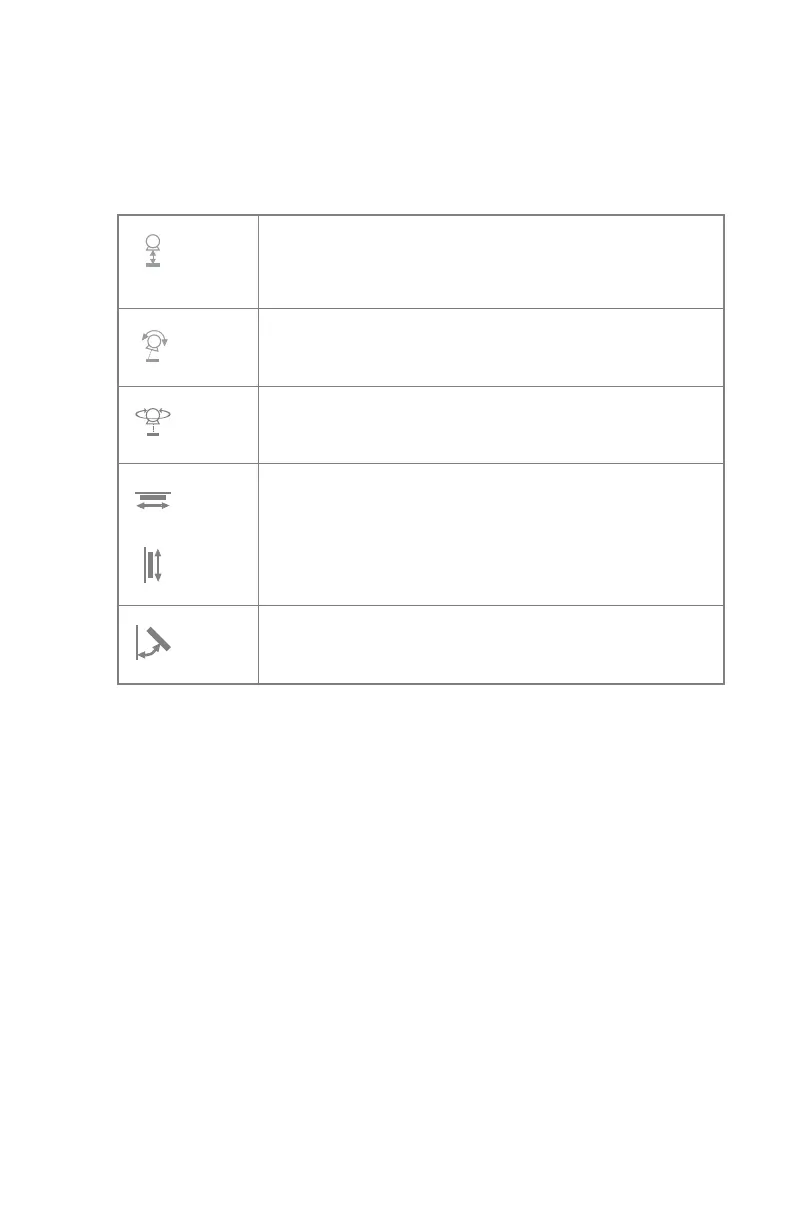

Table 21: Position parameters
Source image distance (SID)
No value is displayed for free exposures or if the X-ray
tube is not pointing to the selected DR detector.
X-ray tube tilting angle (alpha)
Windmill movement
X-ray tube rotation (beta)
Carousel movement
or
Bucky position
Horizontally position of the bucky at the radiographic ta-
ble or vertical position of the bucky at the radiographic
wall stand
Tilting angle of the bucky at the radiographic wall stand
160 | DR 600 | Software Console and Tube Head Display
3261K EN 20210708 0808
