Control Panel of the Tube Head Unit

2 31

Movement control buttons

Tube head display

Handle with integrated release button for omni direction movement.

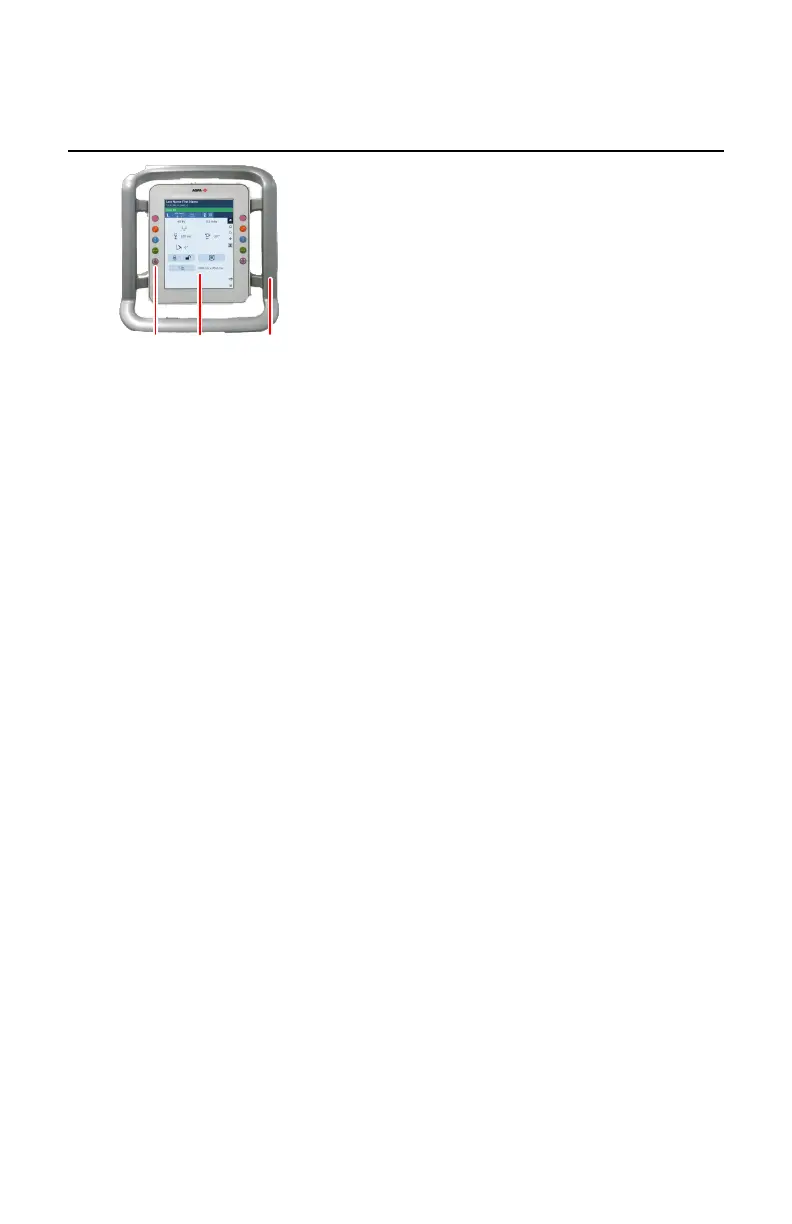

Figure 79: Control panel of the X-ray tube stand

DR 600 | Ceiling Suspension | 181

3261K EN 20210708 0808
