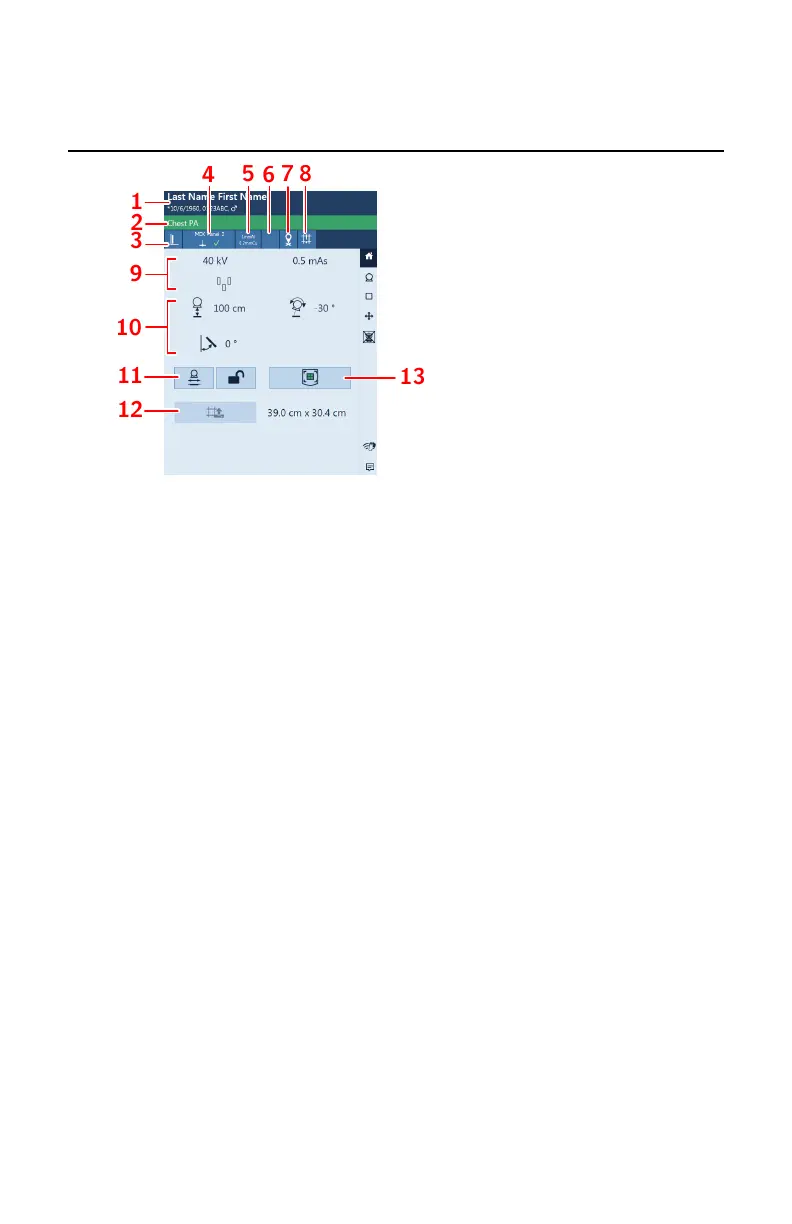

AGFA DR 600 - Main screen of the Tube head display

Main screen of the Tube head display
1
2
3
4
5
6
10
9
7
8
11
13
12
1.
Patient information
2.
Status bar with exam type
3.
Modality position
4.
DR Detector Switch
5.
Filter status
6.
Grid status
7.
Automatic positioning status
8.
Collimator status
9.
Radiographic parameters
10.
Position parameters
11.
Position tracking
12.
Collimation controls
13.
Automatic centering
Figure 59: Example of the tube head display
